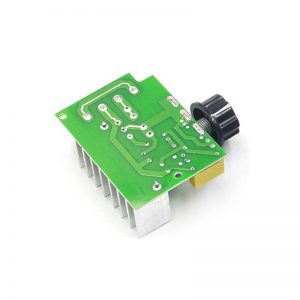

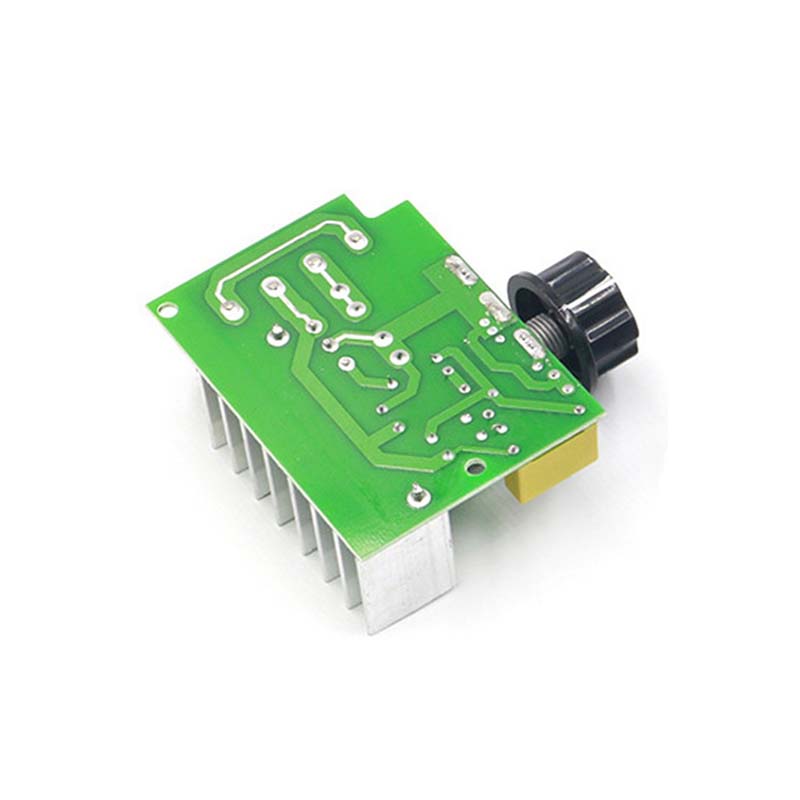

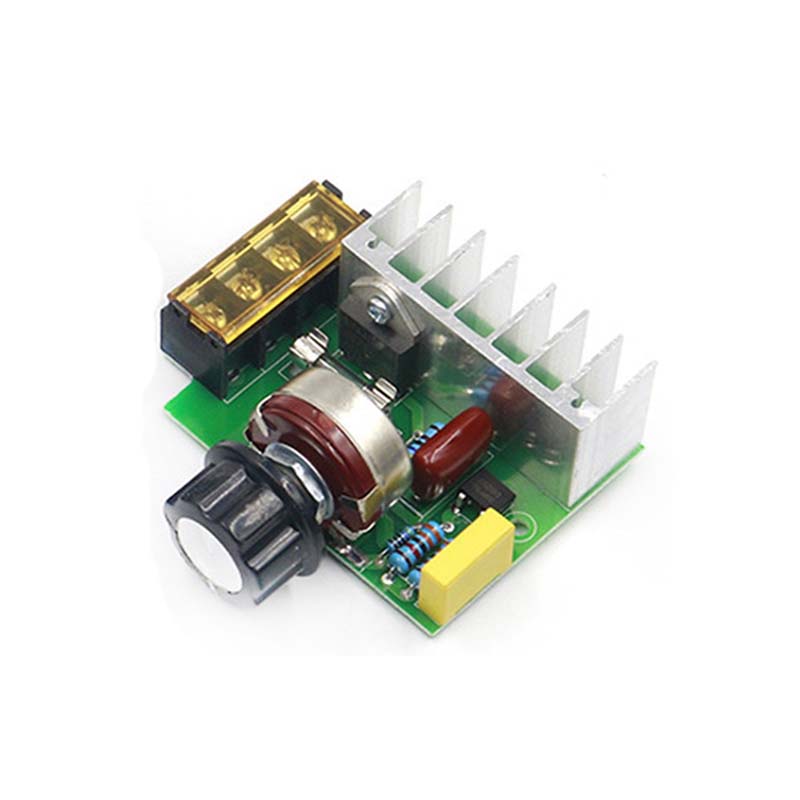

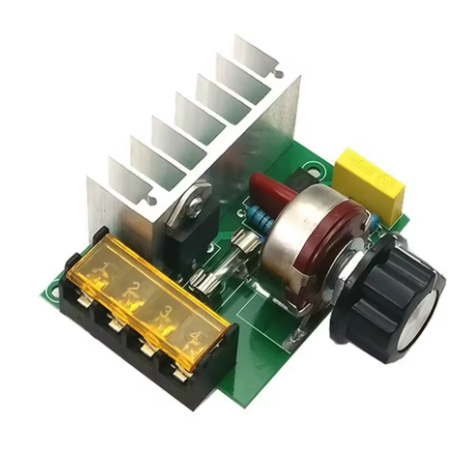

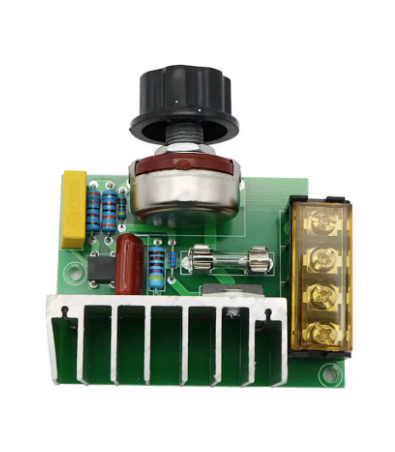

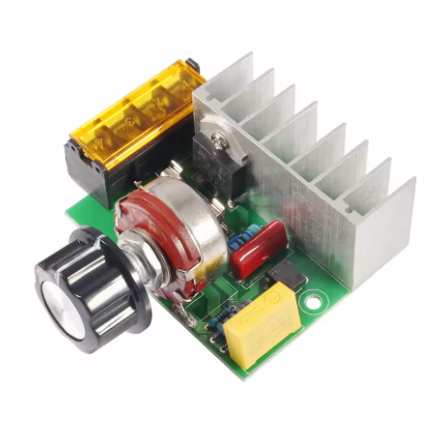

4000W AC 0-220V SCR Electric Voltage Regulator Motor Speed Controller Dimmers Thermostat Module with Temperature Insurance

SKU: FA2020-3 Tag:
Weight 0.065 kg
Dimensions 8.5 × 5.5 × 3.8 cm
Maximum power

4000W (resistive load limit power), long time should be reduced power use. Long time resistance load recommended within 2000
Efficiency

more than 90%
Working voltage

AC 220V
Adjust the voltage

AC 0-220V
Voltage adjustment range

AC 0-220V, Resistive load conditions, starting a dozen volts, callback can be 0

Note that the load must be connected before it can be regulated SCR is mainly used for resistive load (electric wire incandescent lamp, etc.), single-phase AC motor can also be, but not guaranteed can, other types of load, please confirm by yourself Fuses are not omnipotent, there is reaction time, if the current is too large, in addition to burning the fuse, the module may also burn out.
