| Weight | 0.011 kg |
|---|---|
| Full resistance | 50K Ohm |
| Type | B type linear |
| Technology | carbon film |
| Tolerance of resistance | ±20% |
| Rated power | 0.25W |
| Insulation resistance | Min. 100M Ohm at DC500V |
| Withstanding Voltage | AC500V for 1 minute |
| Total rotation angle | 300±5 degree |
| Mechanical life | min. 10000 turns |
| Shaft length | 15mm |
| Shaft diameter | 6mm |
| Mounting hole | 7mm |
| Whole length | 24mm |
| Base diameter | 16.3mm |
Parameters
Full resistance: 50K Ohm
Type:B type linear
Technology:carbon film
Tolerance of resistance:±20%
Rated power:0.25W
Insulation resistance:Min. 100M Ohm at DC500V
Withstanding Voltage:AC500V for 1 minute
Total rotation angle:300±5 degree
Mechanical life:min. 10000 turns
Shaft length:15mm
Shaft diameter:6mm
Mounting hole:7mm
Whole length:24mm
Base diameter:16.3mm

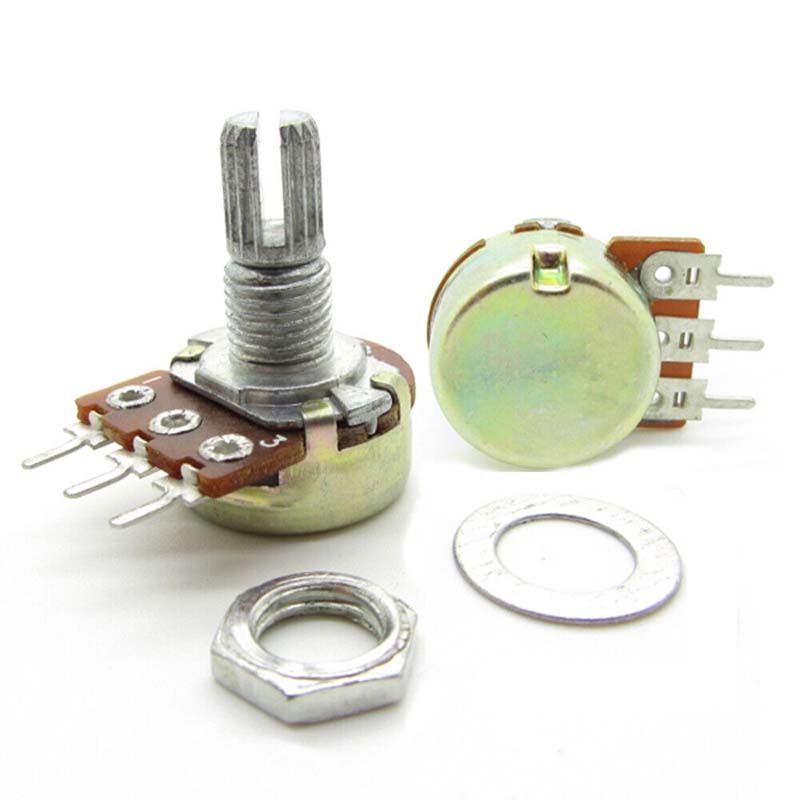

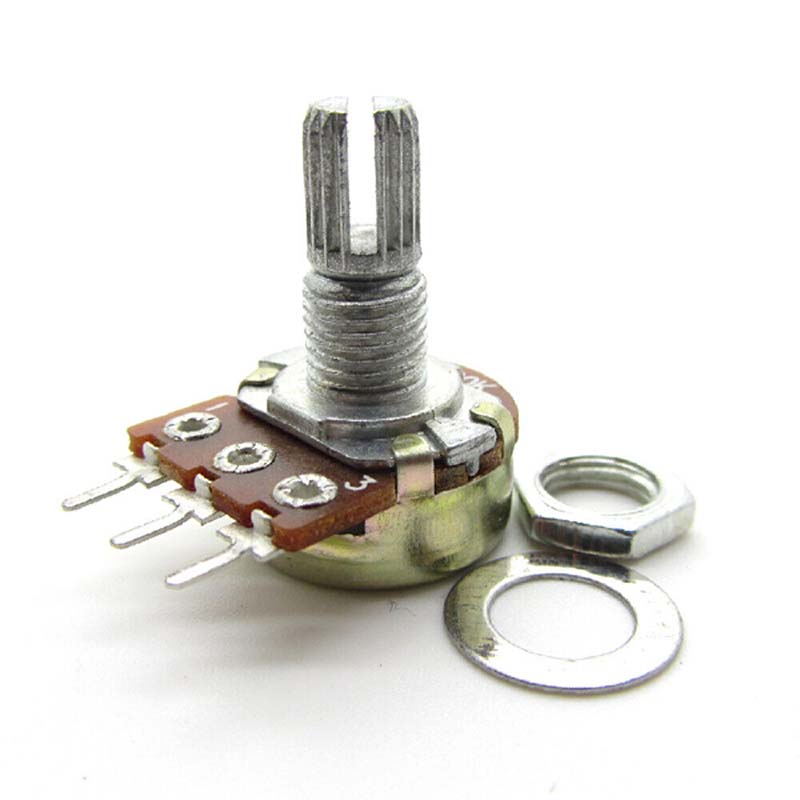

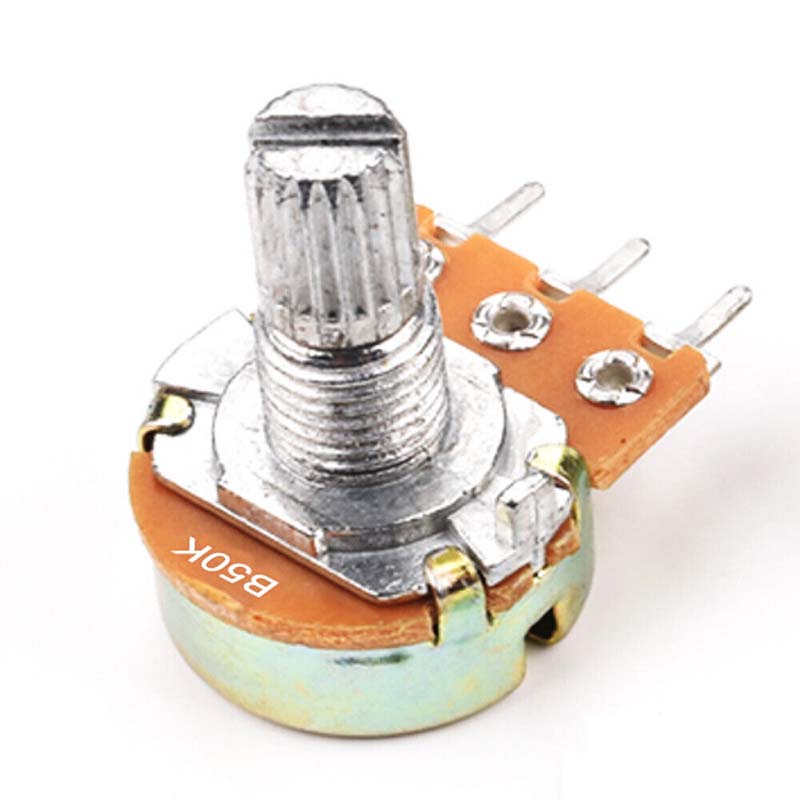

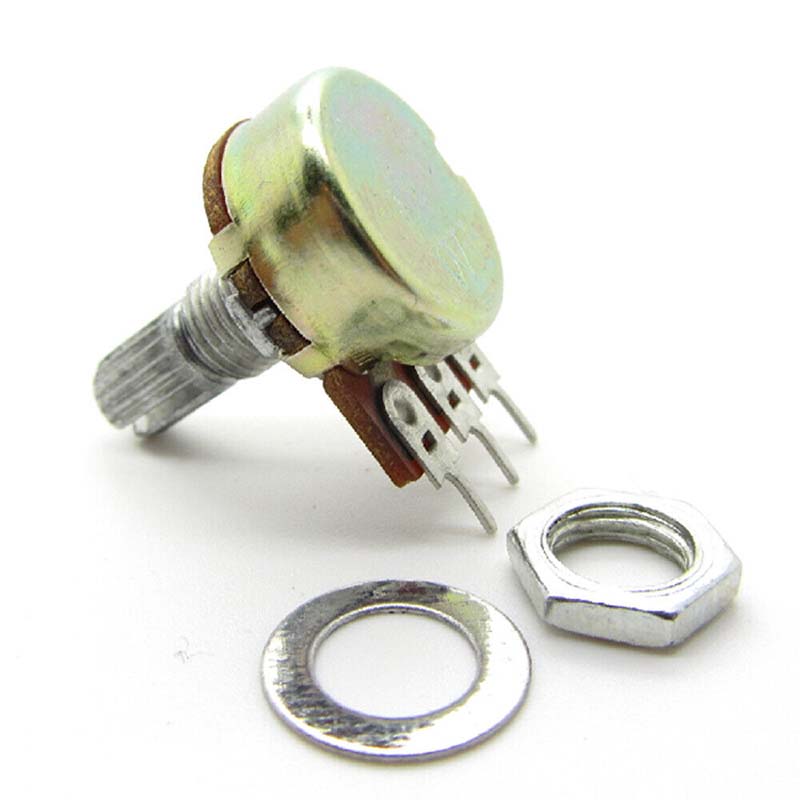

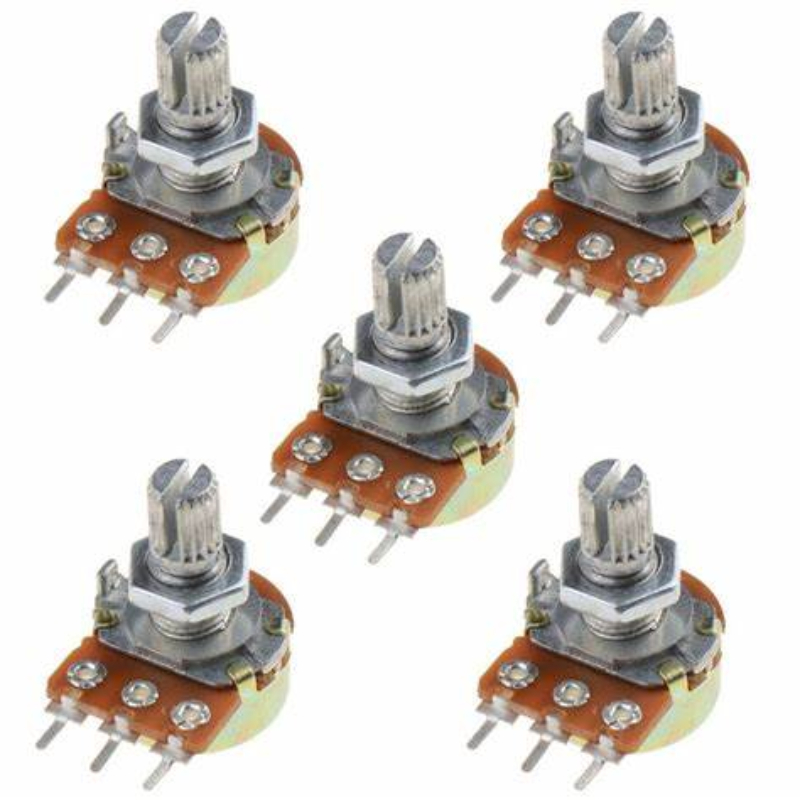

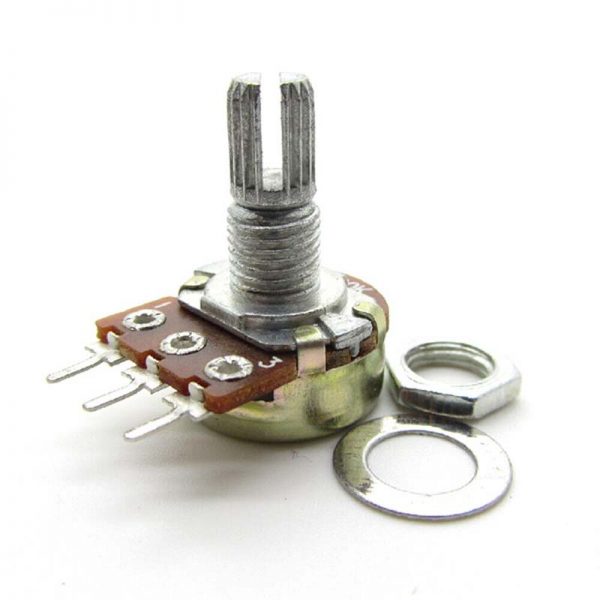

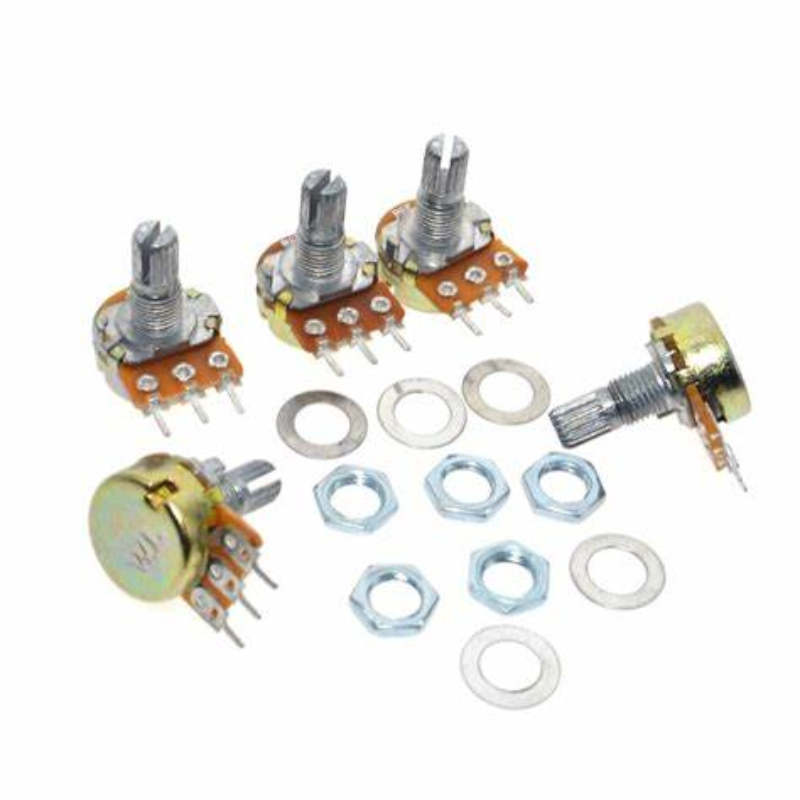

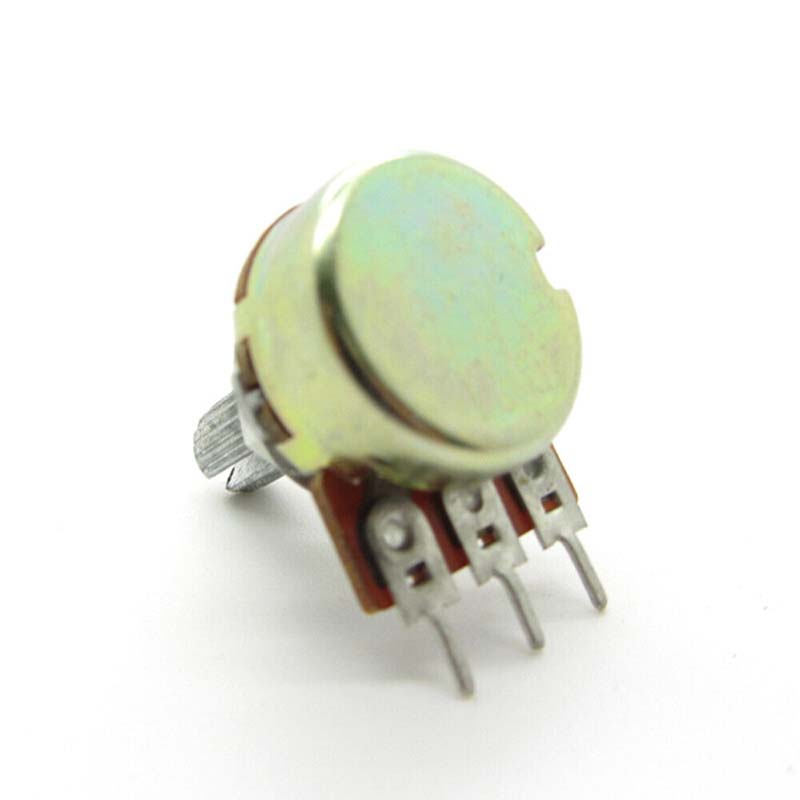

50K Ohm 3Pin 15mm Shaft Potentiometer is used for adjusting various parameters like voltage, current, etc in an electronic circuit. This is a three-terminal variable resistor that is used to vary or change the resistance.
