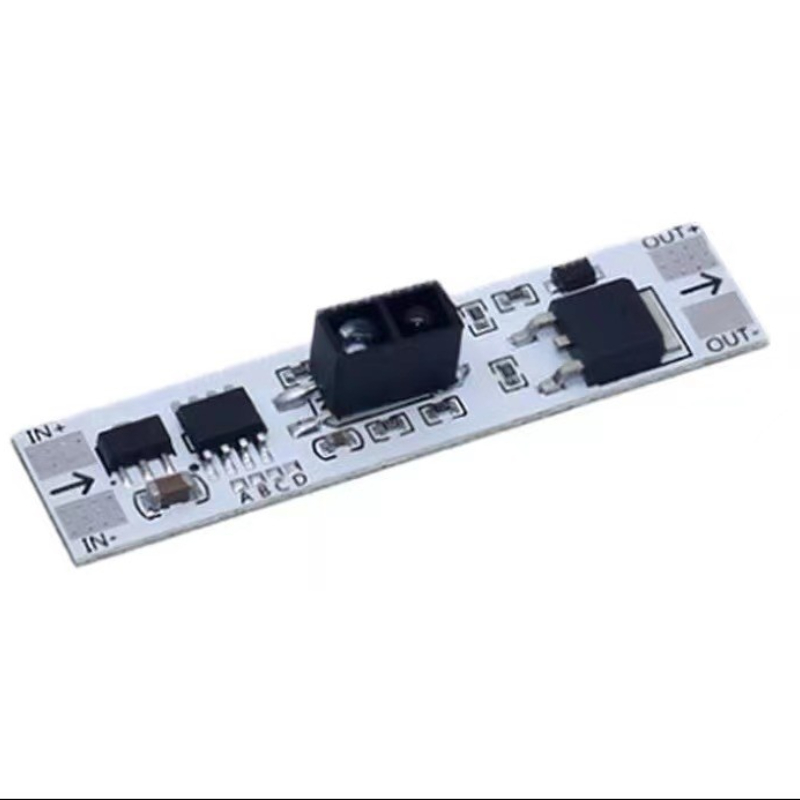

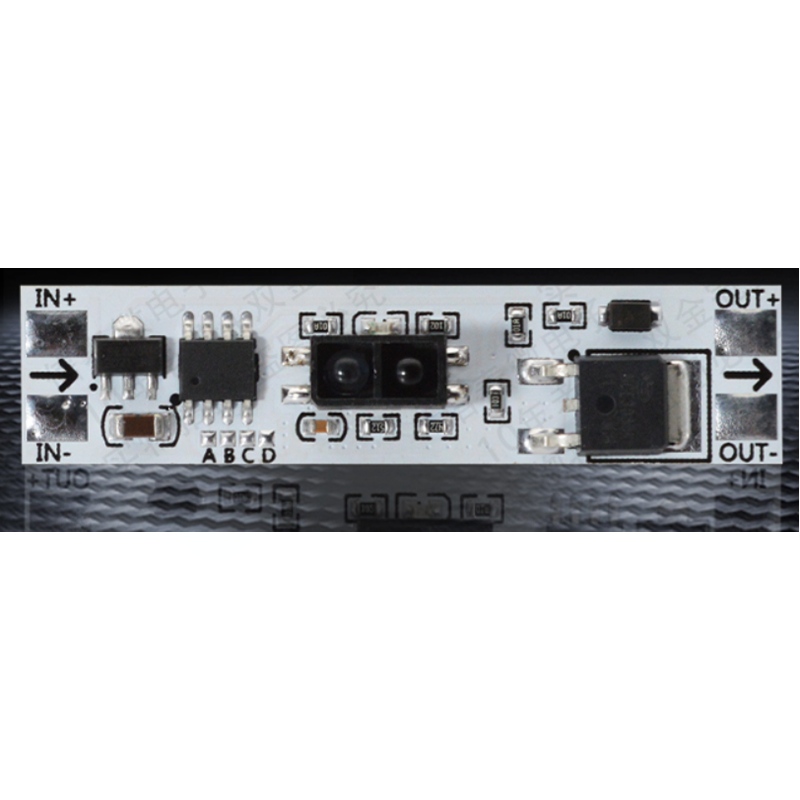

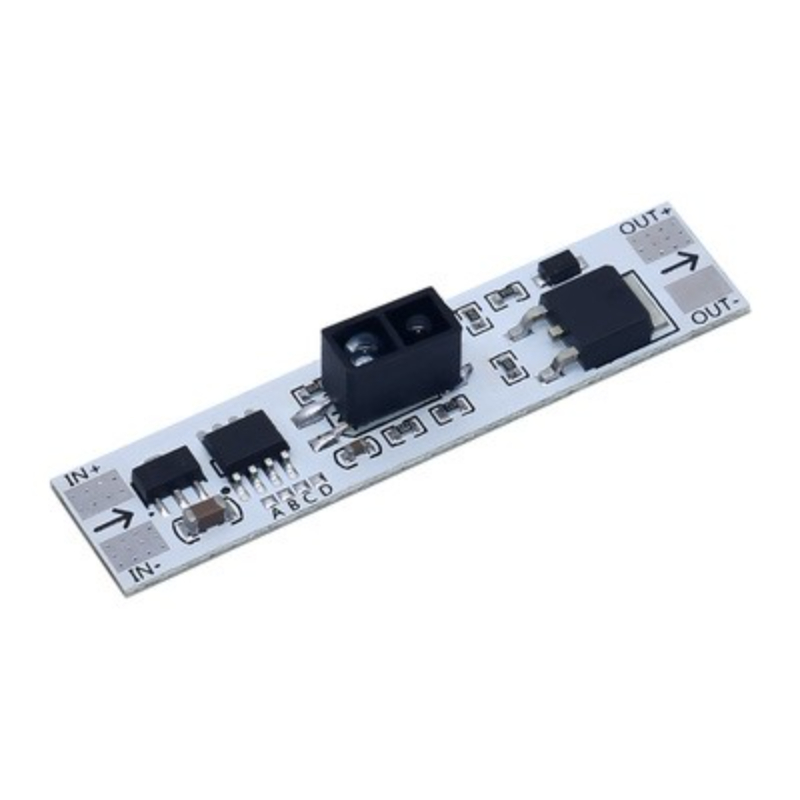

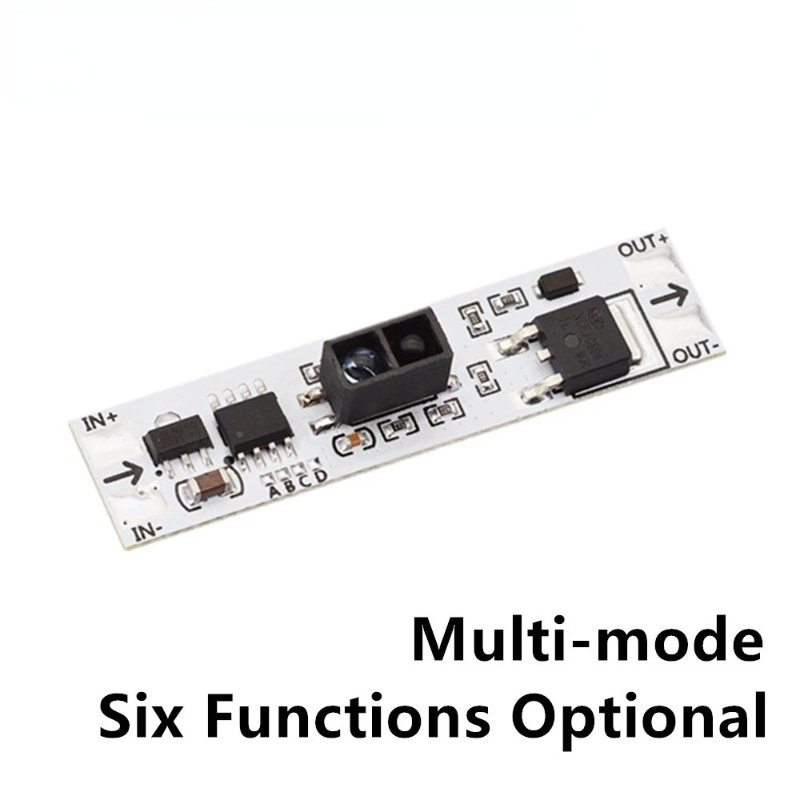

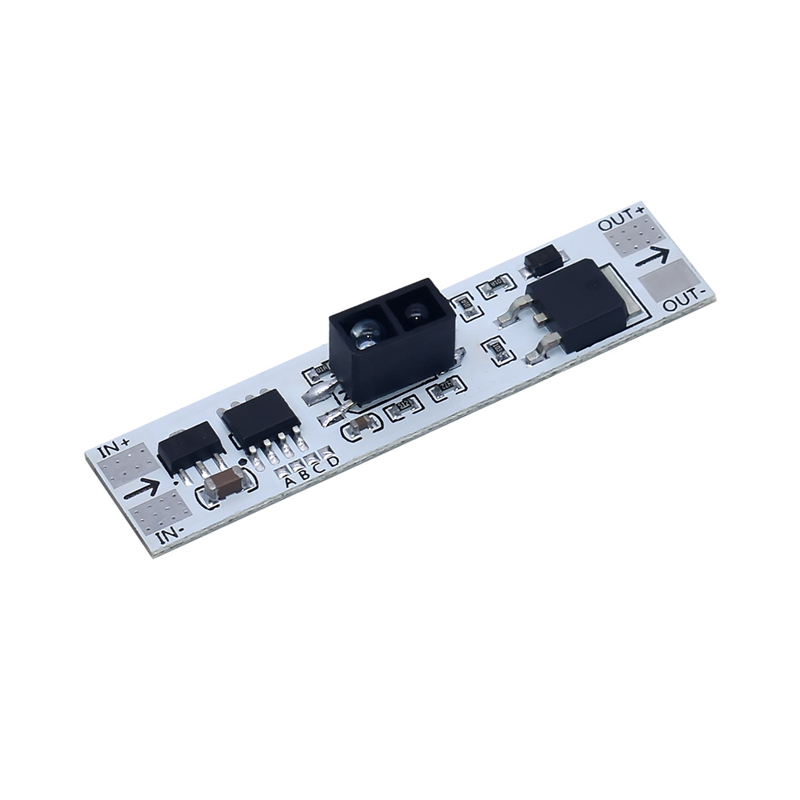

50mm length Multifunctional hand sweep sensor switch cabinet/wine cabinet/equipment infrared switch

SKU: FA3169 Tag:
Weight 0.04 kg

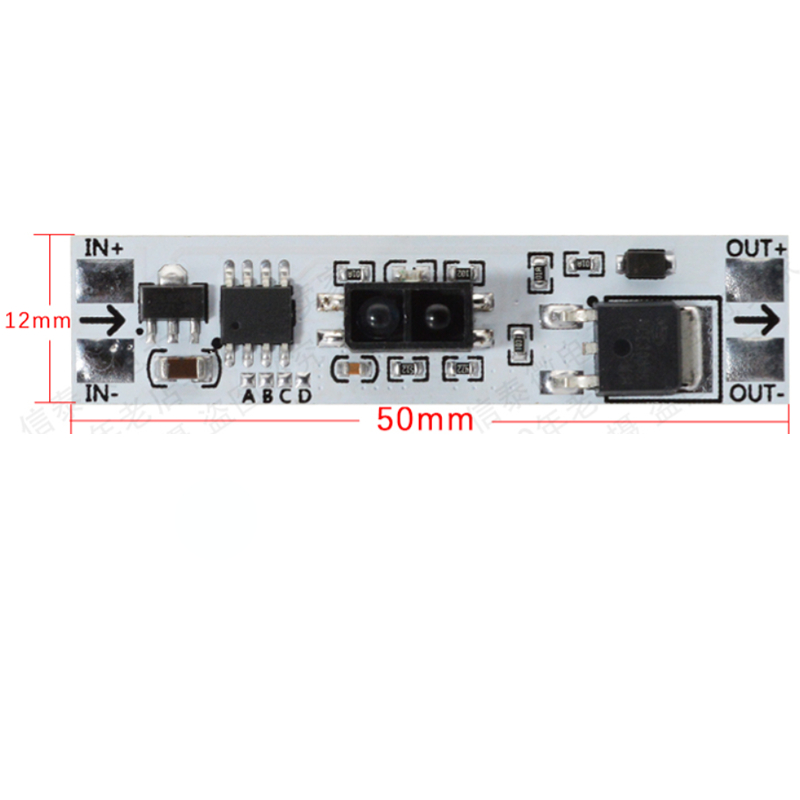

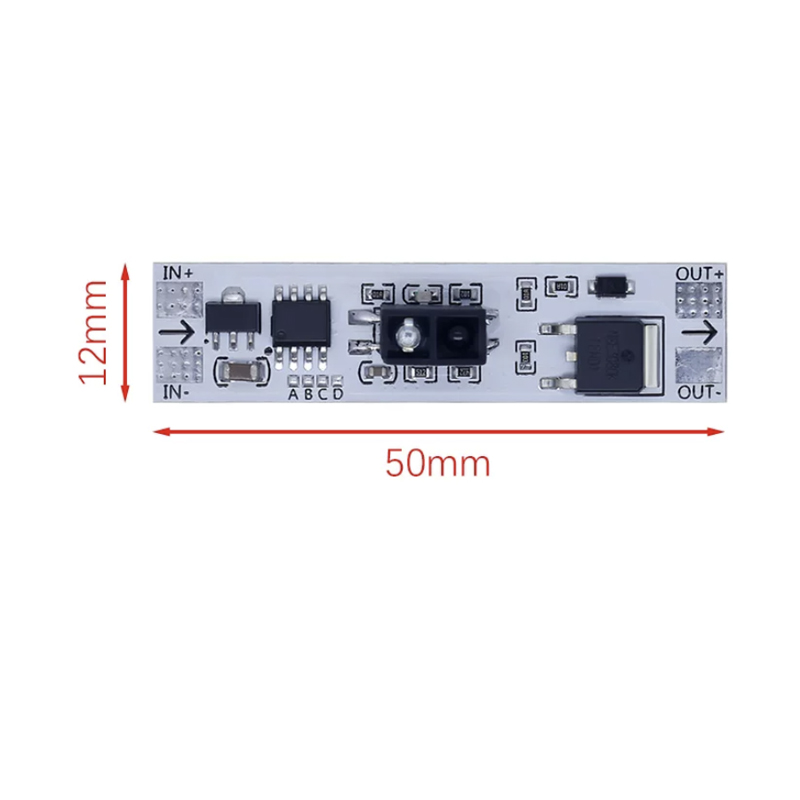

Dimensions 5 × 1.2 × 0.8 cm
Weight

1.09
Dimensions

5 × 1.2 × 0.8 cm
Voltage/Power

12V/60W
Induction angle

110 degree
Sensing distance

30-80mm
Function

Open and close by hand scan

Product introduction

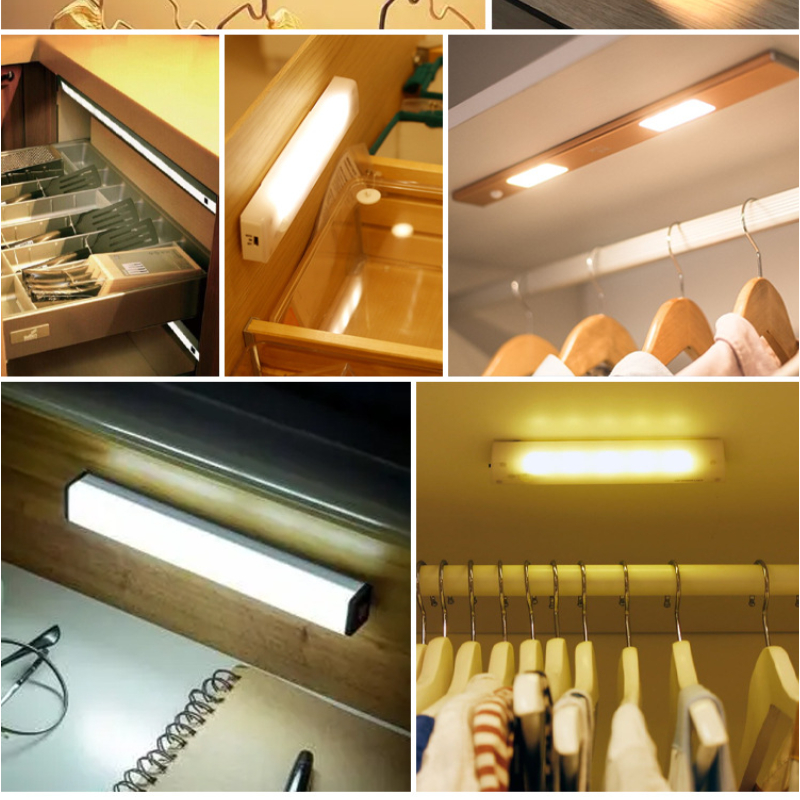

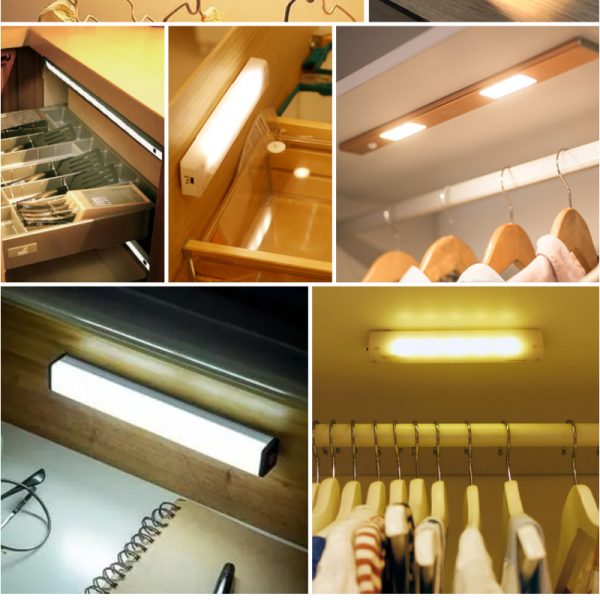

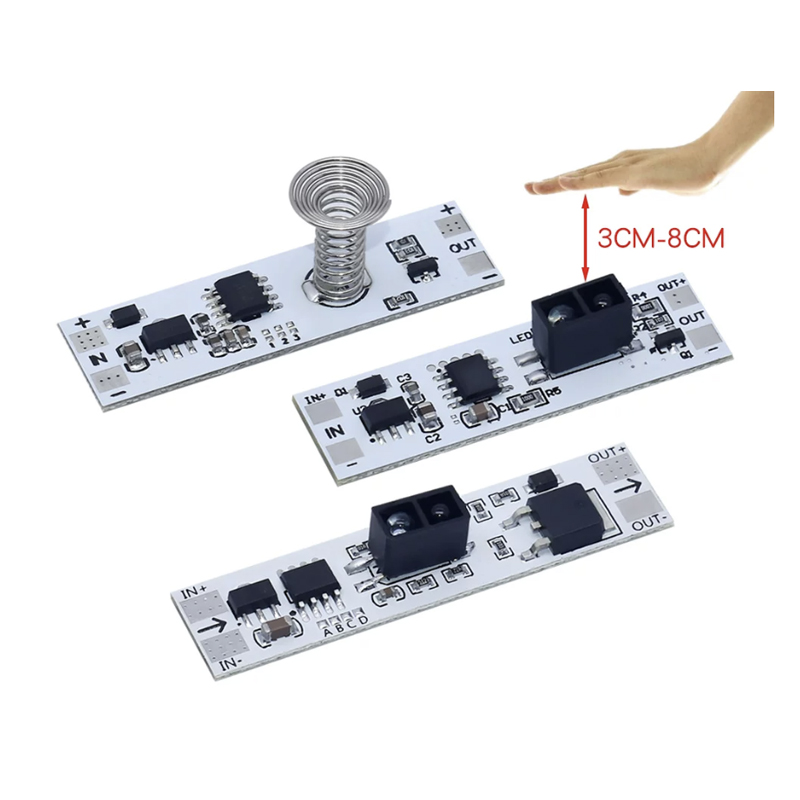

Hand scan sensor switch, used for non-contact hand scan control of LED lights, hand scan distance up to 30~80mm, infrared mode is used to block the sensor

Product parameters

Name: 50mm length Multifunctional hand sweep sensor switch cabinet/wine cabinet/equipment infrared switch
Working voltage: input: 5V-24V  output: equal to the input voltage
Output form: switch + indicator light
Sensing range: 30-80mm
Induction principle: infrared
Load power: 60W (MAX)
Delay off time: No, scan and turn on/off
Scope of application: DC constant voltage
Load current: resistive 3A
Standby current: 10-15mA VIN: 5-24V

Note: The controller is only used for the switch control of LED lights, and cannot be used with inductive loads (such as inductors, motors, relays, etc.)

Q: How to make sure the quality?

We have very strict tests including 100,000 switching test experiments, 100W overload power test, so we have confidence for the quality.

Q: Why the sensor performs sensitive?

We use Taiwan Yiguang Photoelectric head.

Q: How many years have you exported for this products?

We have exported this products for 8 years, we have very stable customers who place order every month.
