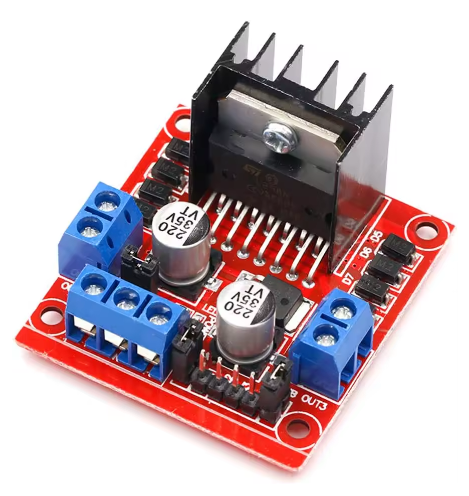

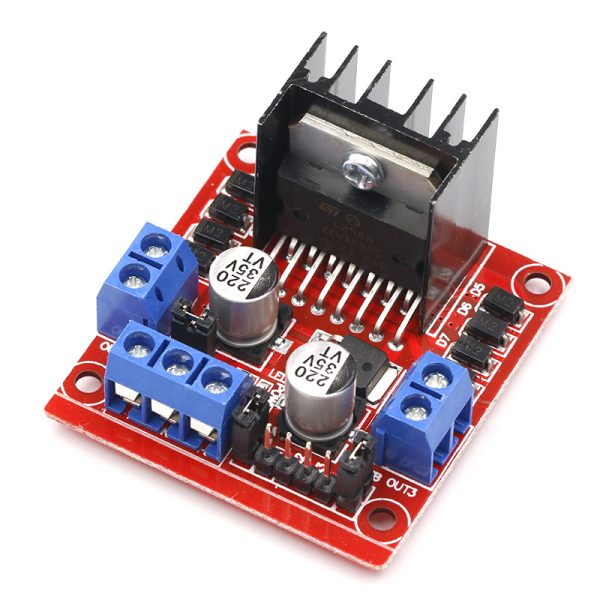

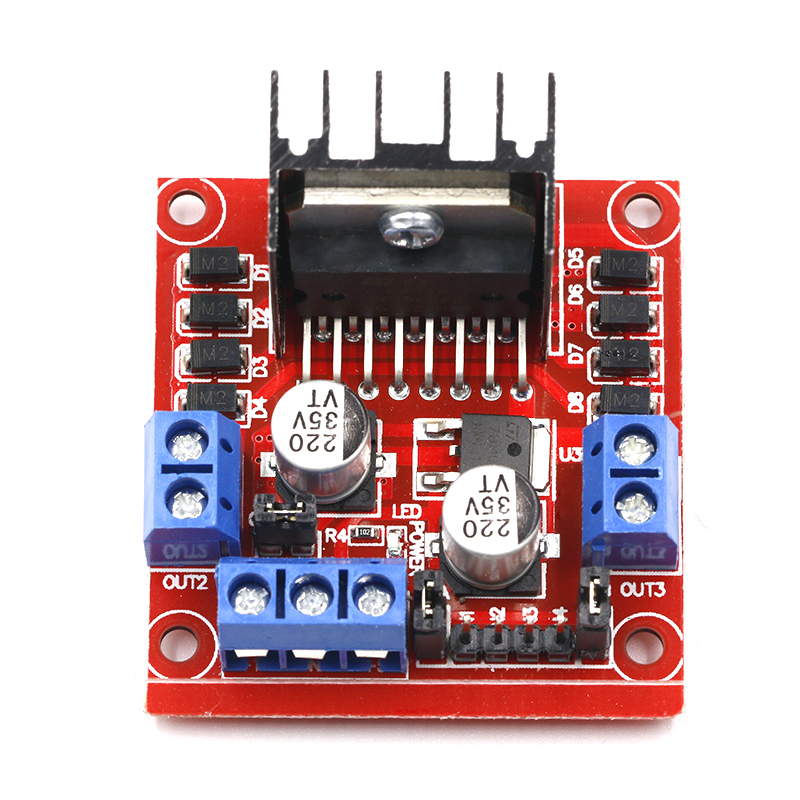

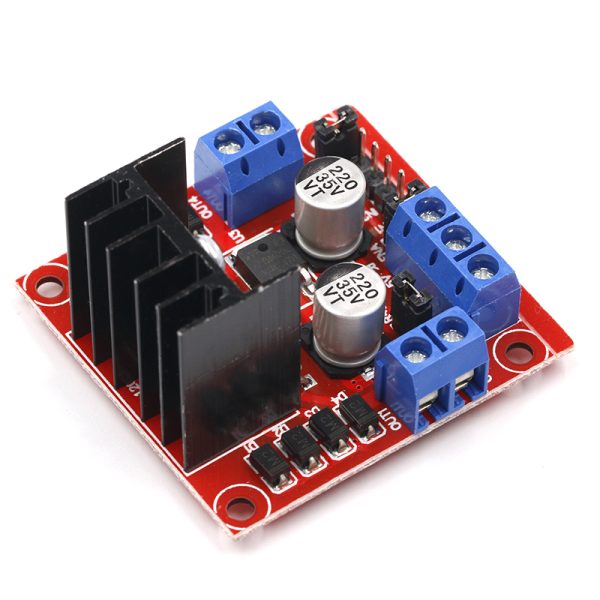

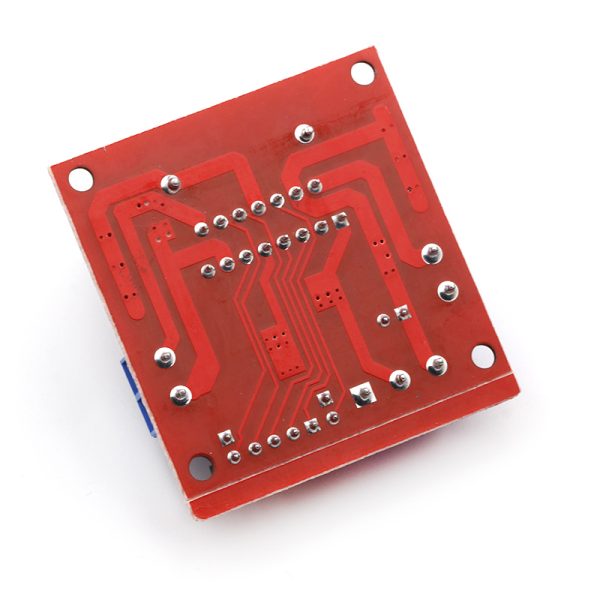

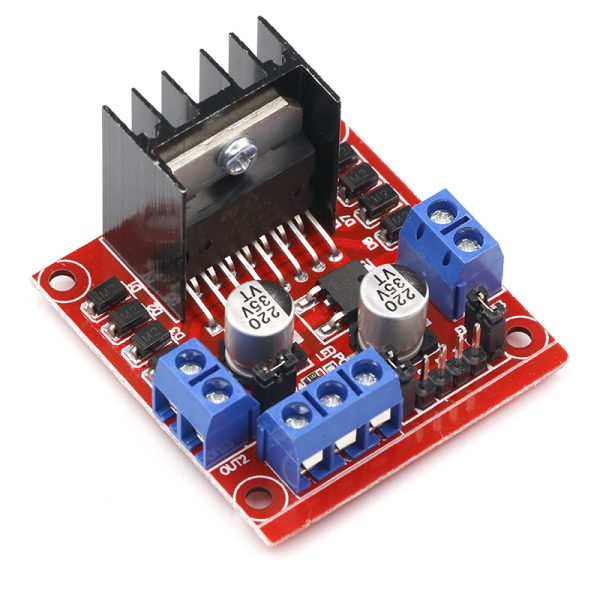

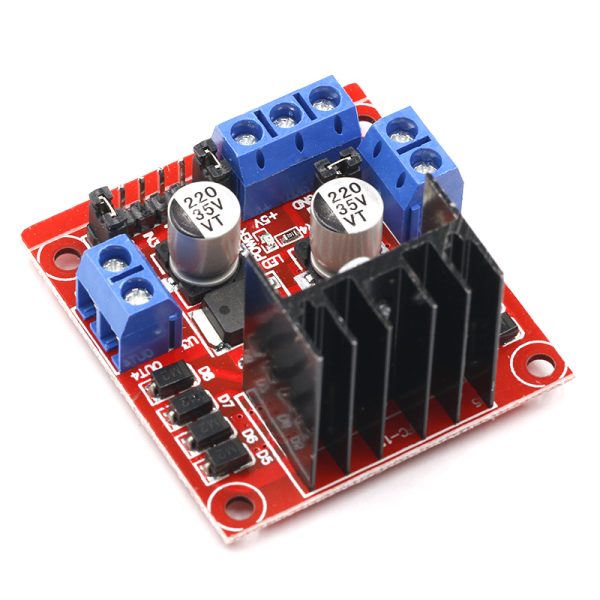

L298N Motor Drive Controller Board Module Dual H Bridge DC Stepper For Arduino

SKU: FA2064 Tag:
Dimensions 4.3 × 4.3 × 2.7 cm
Chip

L298N
Logic voltage

5V
Logic current

0mA-36mA
Storage Temperature

-20 ℃ to ℃ to +135
Operating mode

H-bridge driver (dual)
Drive voltage

5V-35V
Drive current:

2A (MAX single bridge)
Maximum power

25W
  • Dual-channel H-bridge driver working mode creates higher working efficiency,L298N as main chip.Can drive one 2-phase stepper motor, one 4-phase stepper motor or two DC motors.
  • To avoid damage the voltage stabilizing chip, please use an external 5V logic supply when using more than 12V driving voltage
  • Use large-capacity filter capacitors and diode with freewheeling protection function, increasing reliability
  • High working power to 35v,large current can reach 3A MAX and continue current is 2A, power to 25w.
  • Large capacity filter capacitance,afterflow protection diode, more stable and reliable.
  • This module has a built-in 5v power supply, when the driving voltage is 7v-35v, this supply is suitable for power supply
  • DO NOT input voltage to +5v supply interface, however ledding out 5v for external use is available.

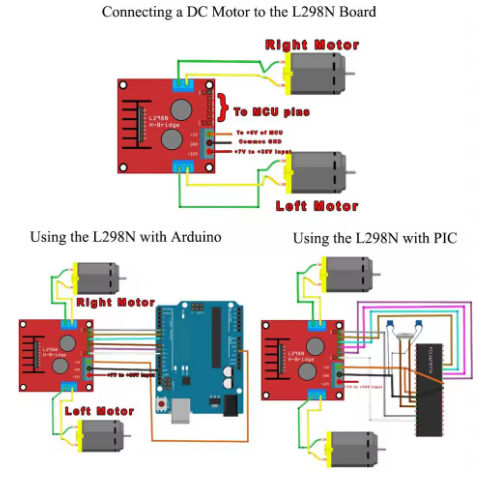

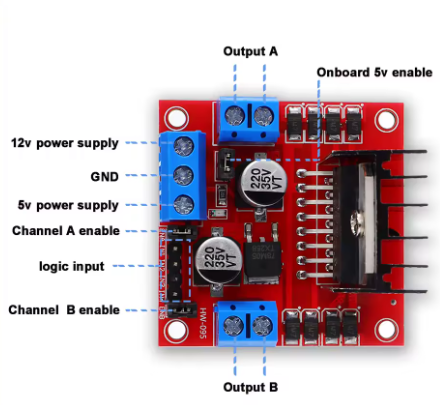

  • When ENA enable IN1 IN2 control OUT1 OUT2
  • When ENB enable IN3 IN4 control OUT3 OUT4
