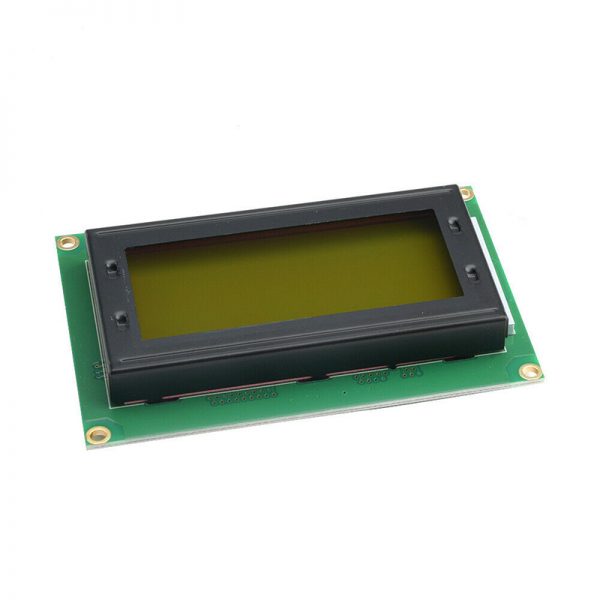

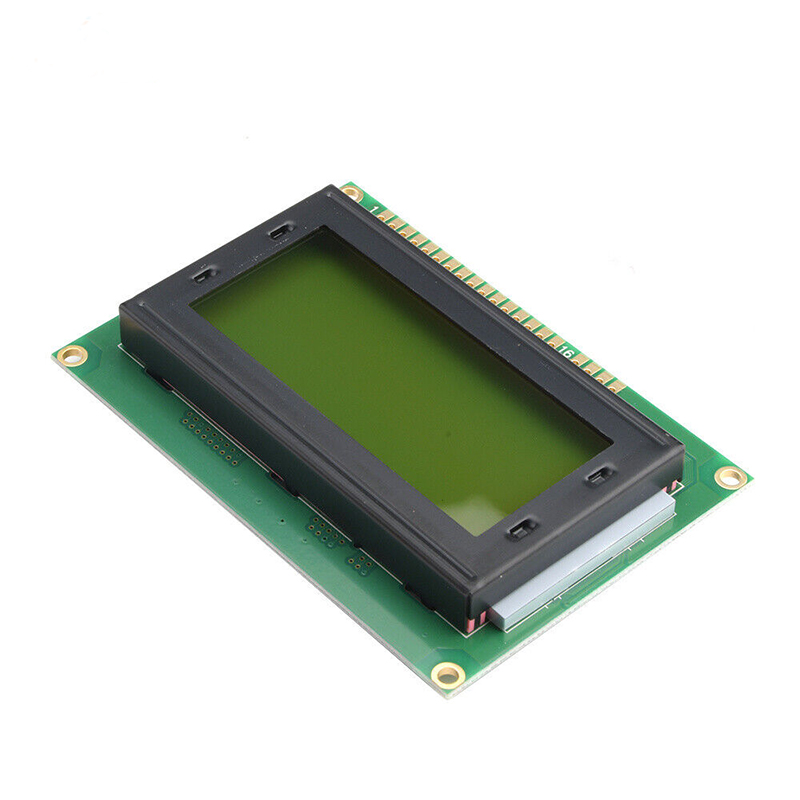

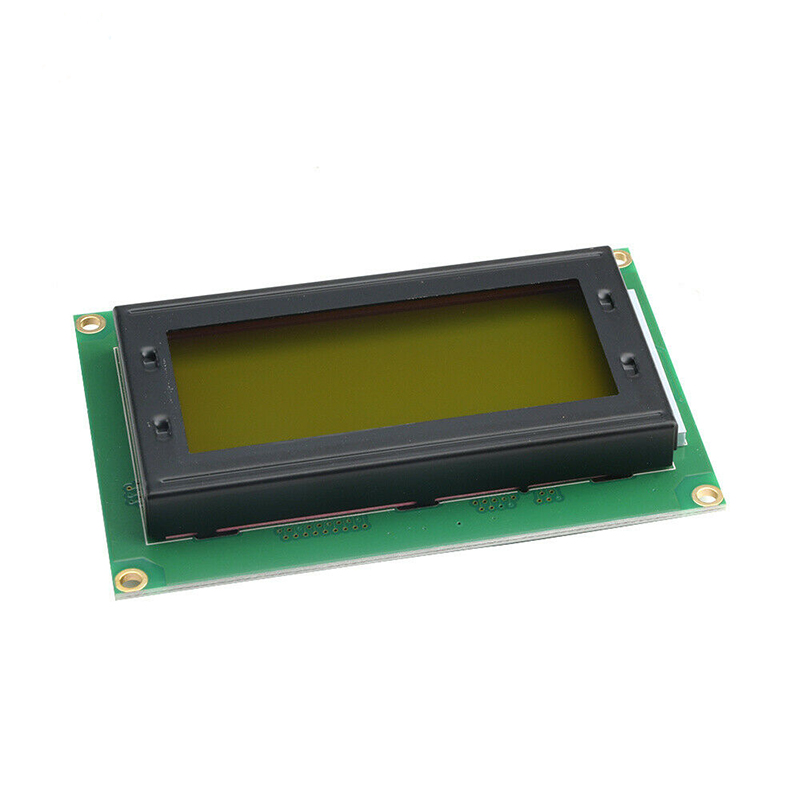

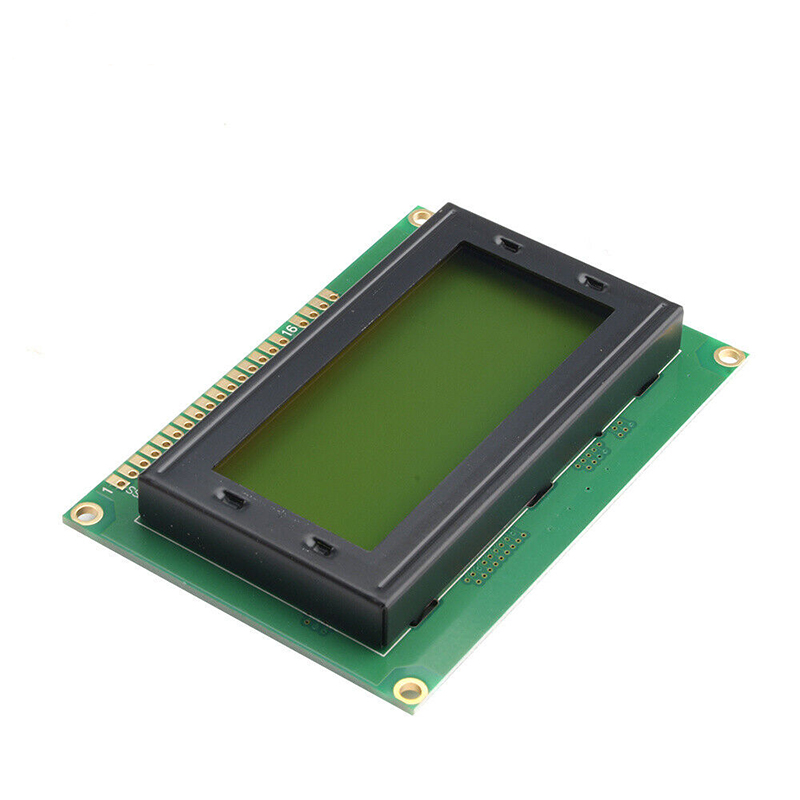

Features

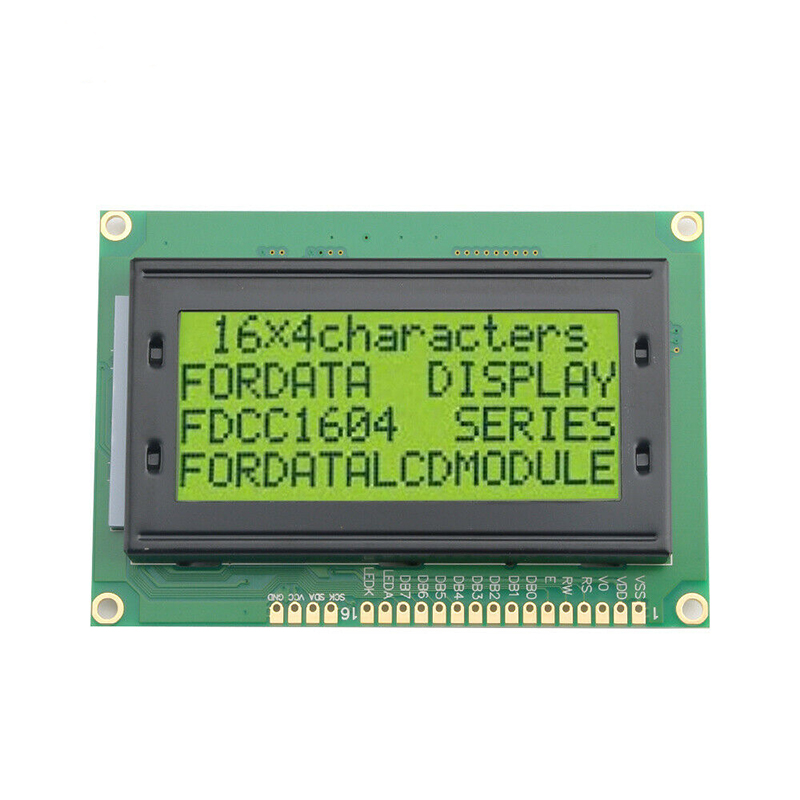

| DISPLAY CONSTRUCTION | 16 Characters * 4 Lines |
|---|---|
| DISPLAY MODE | TN/STN |
| DISPLAY TYPE | Positive Transflective |
| BACKLIGHT | LED/4.2VDC |
| VIEWING DIRECTION | 6 o’clock |
| OPERATING TEMPERATURE | Indoor |
| DRIVING VOLTAGE | Single power |
| DRIVING METHOD | 1/16 duty,1/4 bias |
| TYPE | COB (Chip On Board) |
| NUMBER OF DATA LINE | 8-bit parallel |
| CONNECTOR | Pin / ZEBRA |
Key Parameters
| DRIVER IC | KS0066 (compatible with HD44780) |
|---|---|
| INTERFACE | Parallel |
| BACKLIGHT | Blue |
| CHARACTER COLOR | White |
| CHARACTER SET | ASCII |
| DIMENSION | 87 * 60 * 13.5 |

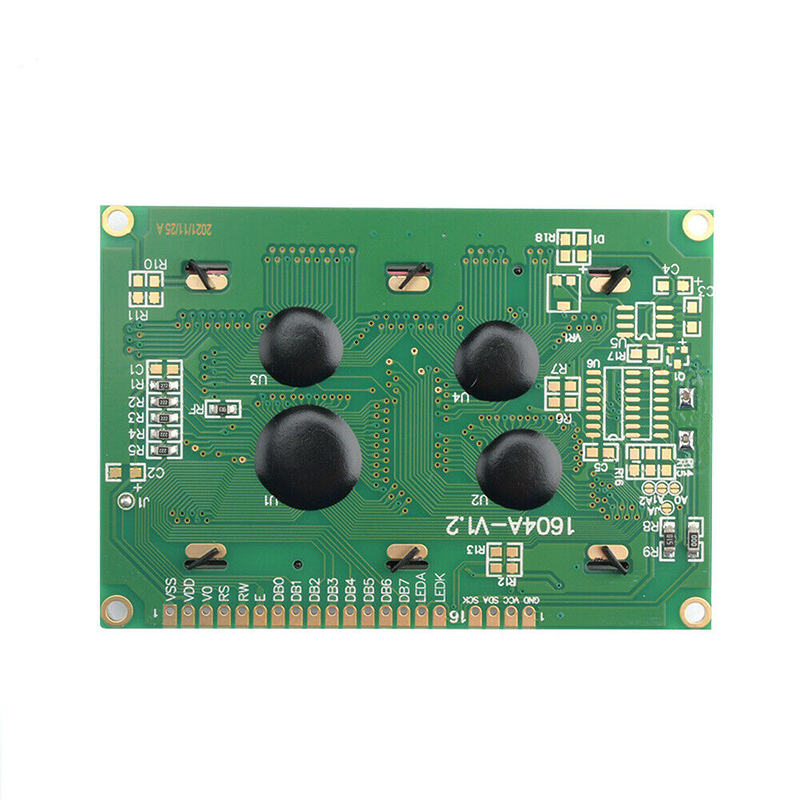

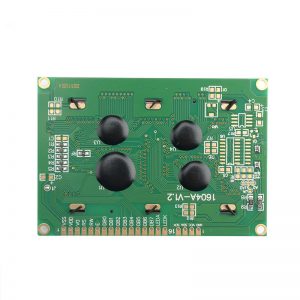

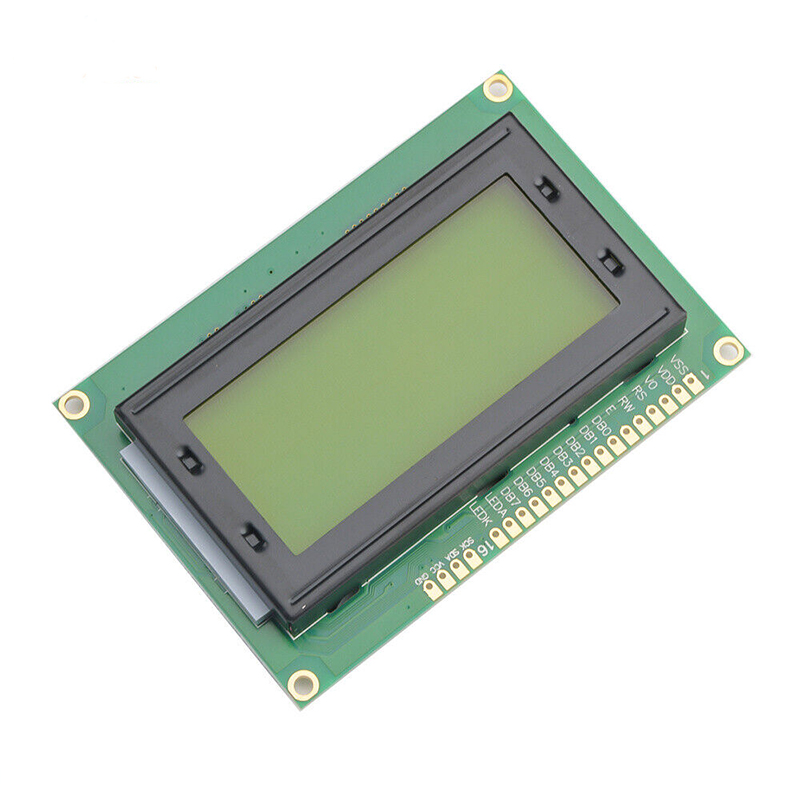

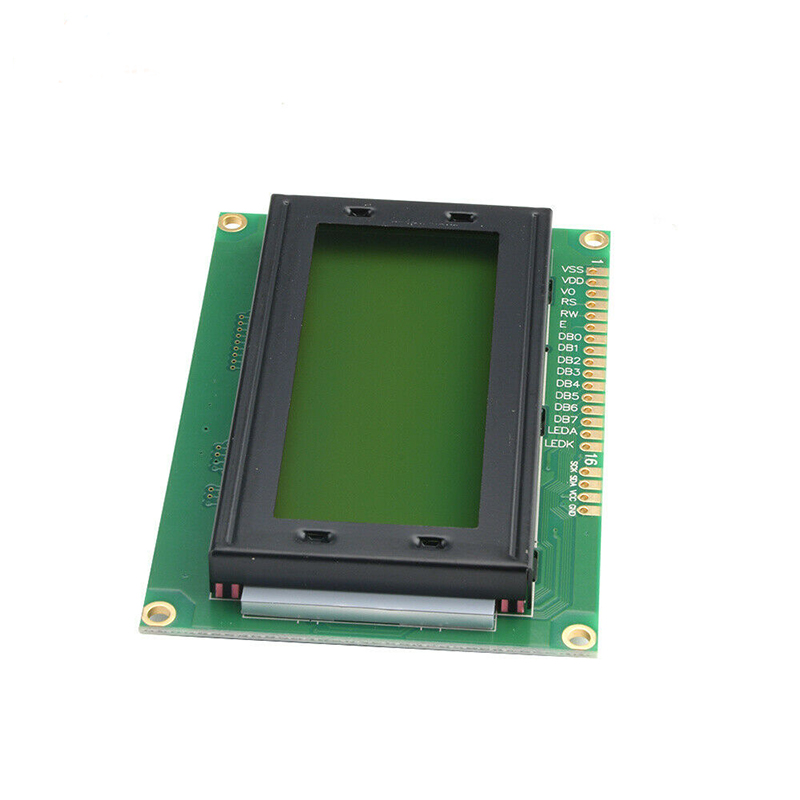

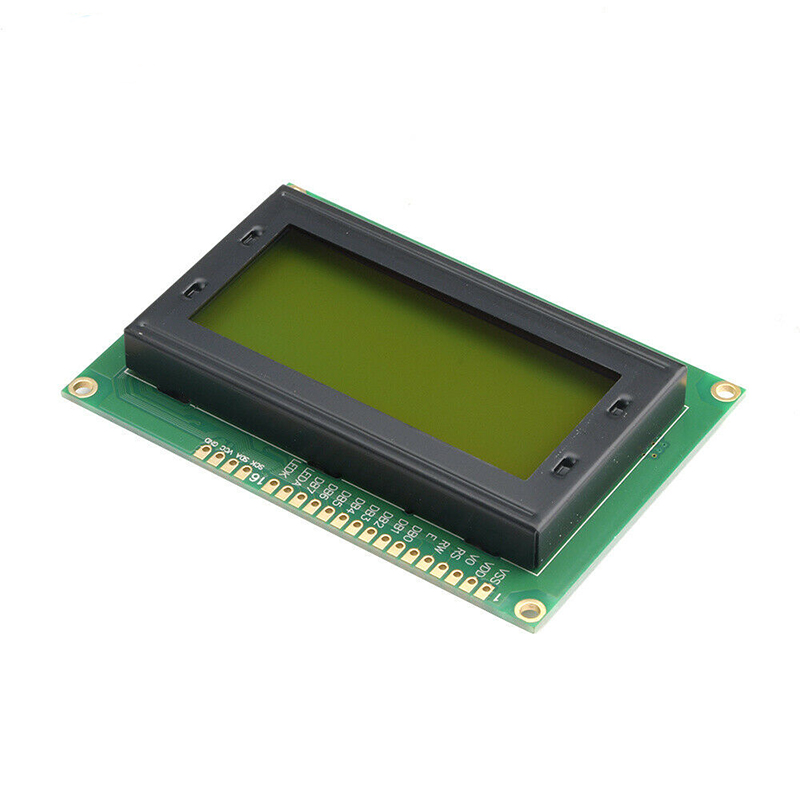

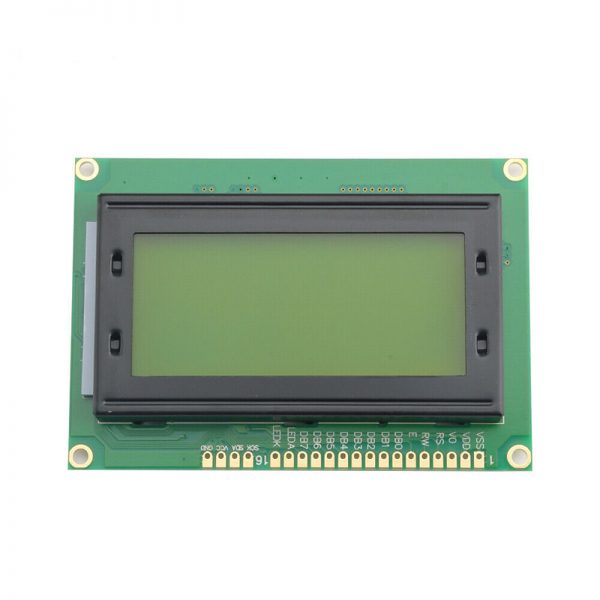

Interface
| PIN NO. | SYMBOL | DESCRIPTION | FUNCTION |
|---|---|---|---|
| 1 | VSS | Ground | 0V (GND) |
| 2 | VCC | Power Supply For Logic Circuit | +5V |
| 3 | VEE | LCD Contrast Adjustment | |
| 4 | RS | Instruction/Data Register Selection | RS = 0 : Instruction Register RS = 1 : Data Register |
| 5 | R/W | Read/Write Selection | R/W = 0 : Register Write R/W = 1 : Register Read |
| 6 | E | Enable Signal | |
| 7 | DB0 | Data Input/Output Lines | 8 BIT: DB0-DB7 |
| 8 | DB1 | ||
| 9 | DB2 | ||
| 10 | DB3 | ||
| 11 | DB4 | ||
| 12 | DB5 | ||
| 13 | DB6 | ||
| 14 | DB7 | ||
| 15 | LED+ | Supply Voltage For LED+ | +5V |
| 16 | LED- | Supply Voltage For LED- | 0V |
External Dimension
