| Weight | 8 kg |
|---|---|
| Dimensions | 40 × 33 × 24 cm |
| Range of Spindle | 1 – 10000 rpm |
| Positioning Accuracy (mm) | 0.1 mm |
| Number of Axes | 3 |
| Working Table Size(mm) | 300*180mm |
| Repeatability (X/Y/Z) (mm) | 0.1 mm |
| Voltage | Voltage |
| Working Voltage | 24V 5.6A |
| Supported Formats | jpg, bmp, svg, G-code |
| Function | Cutting Engraving Non-metal Materials |

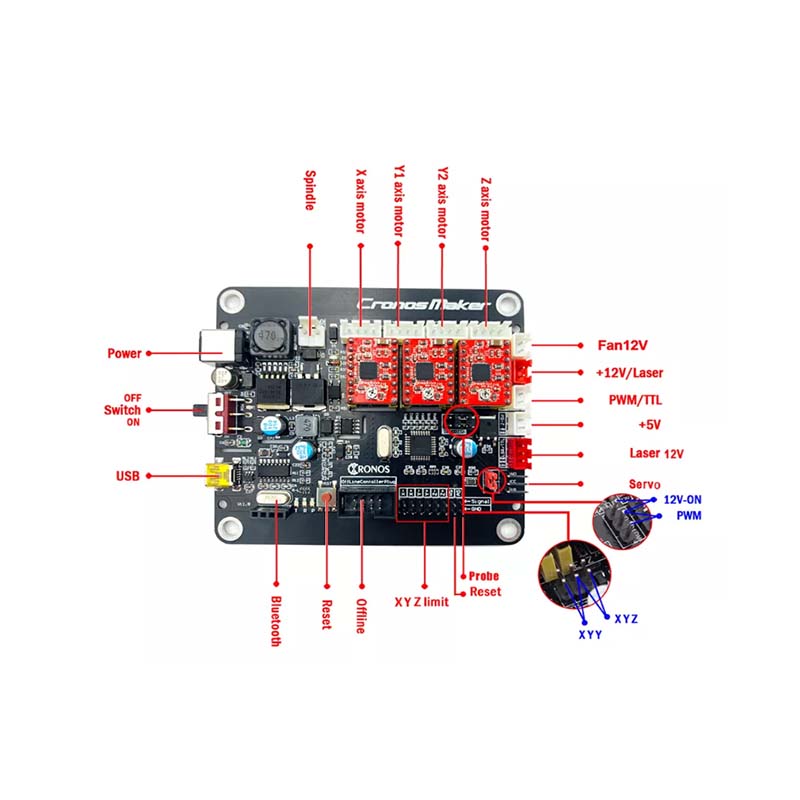

| Control software | GRBL control |

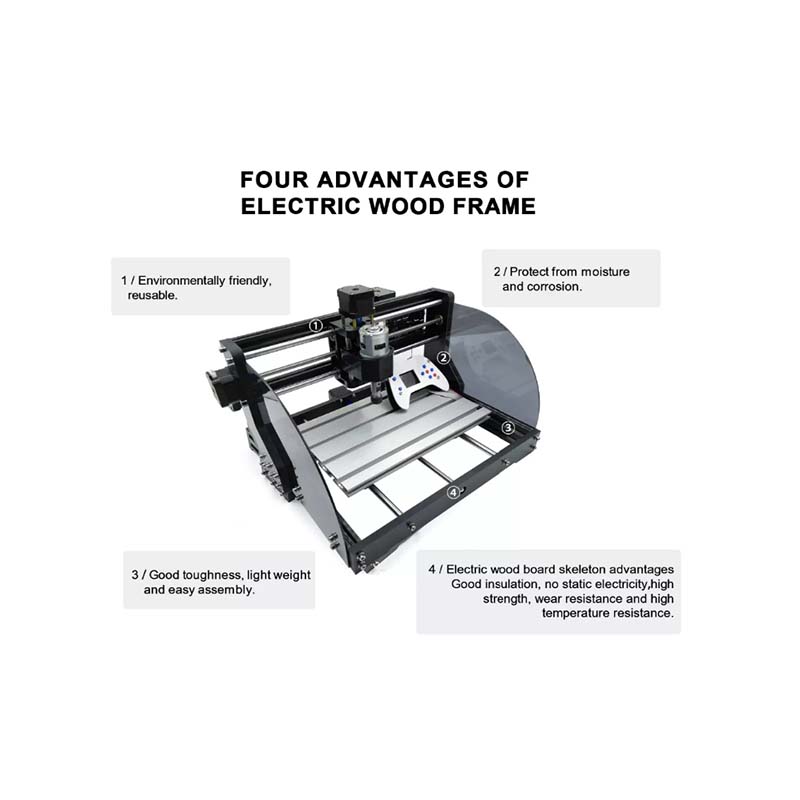

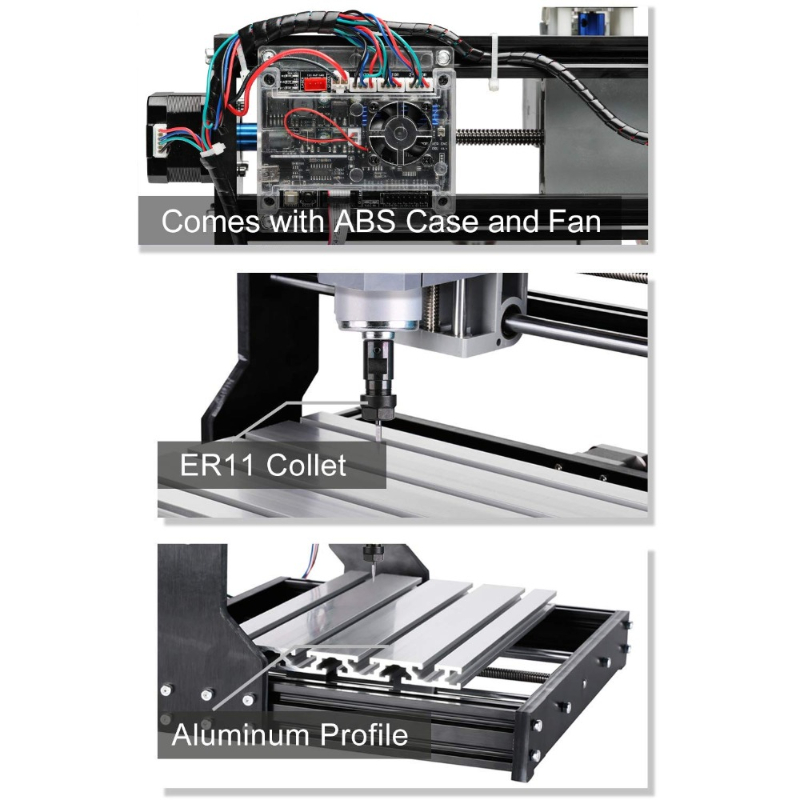

| Construction | Aluminum + BAKELITE |

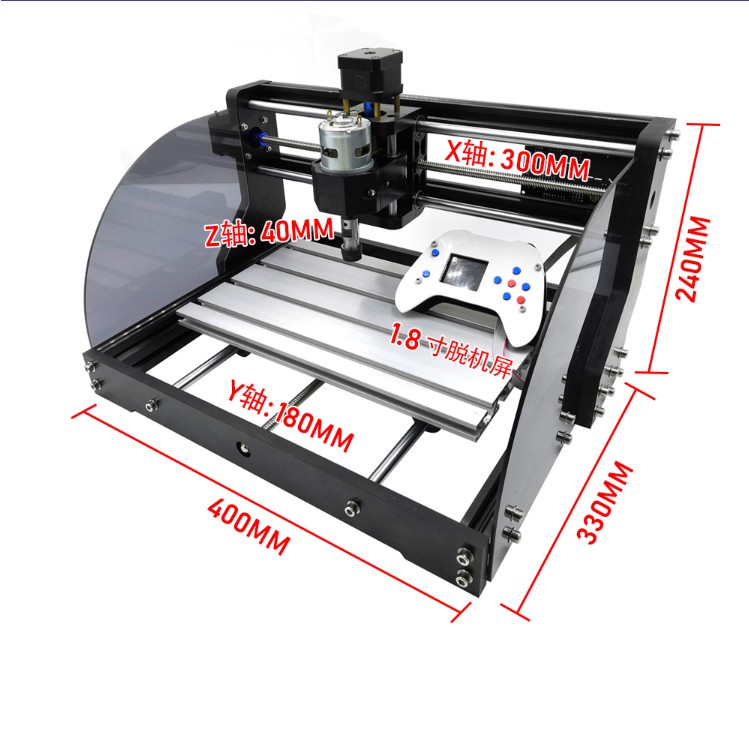

| Working area | 300*180*40mm |
| Frame size | 400*330*240mm |

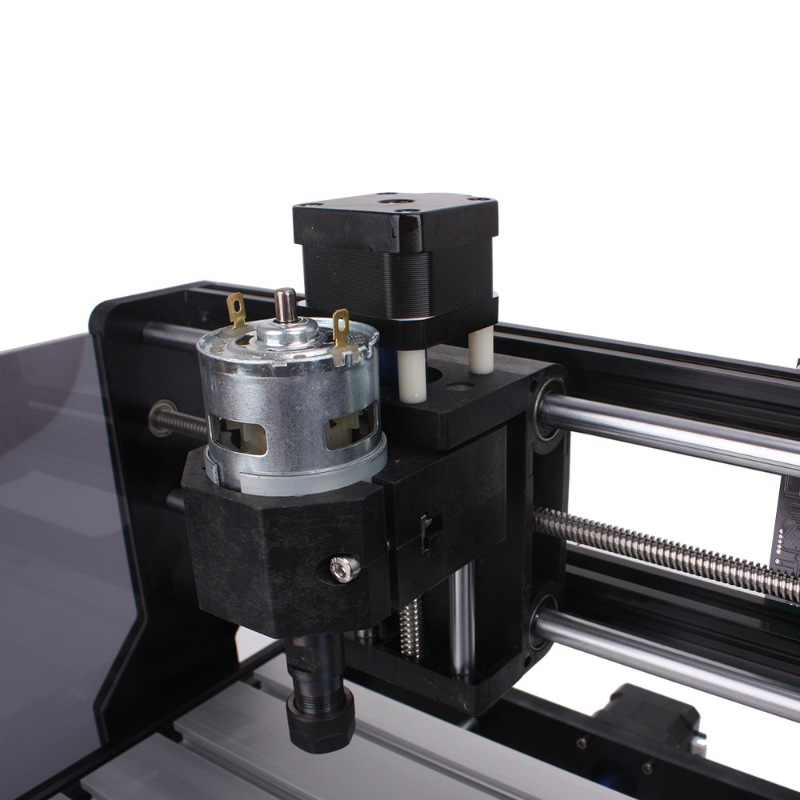

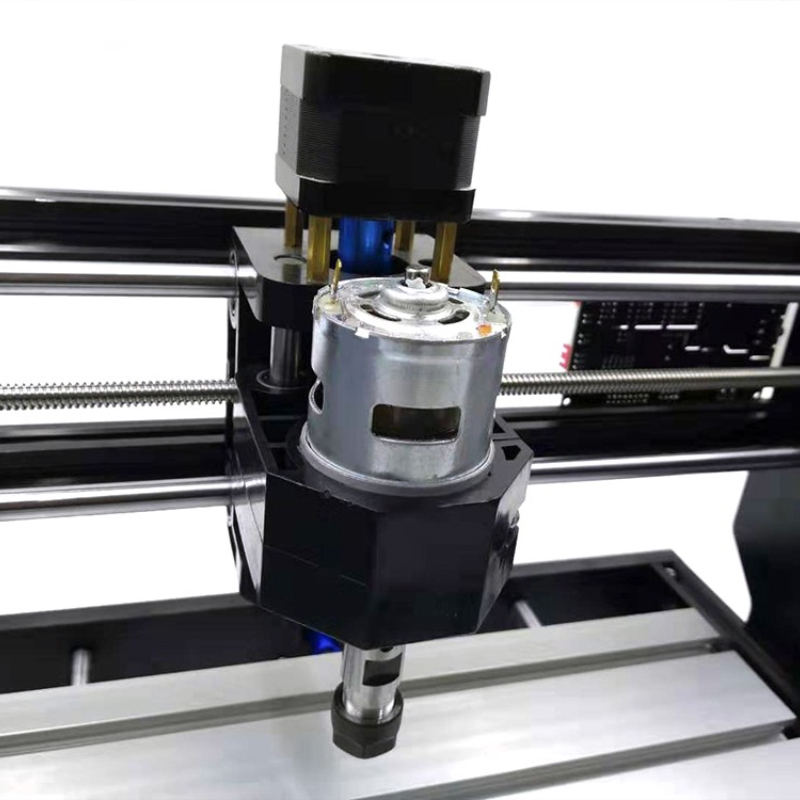

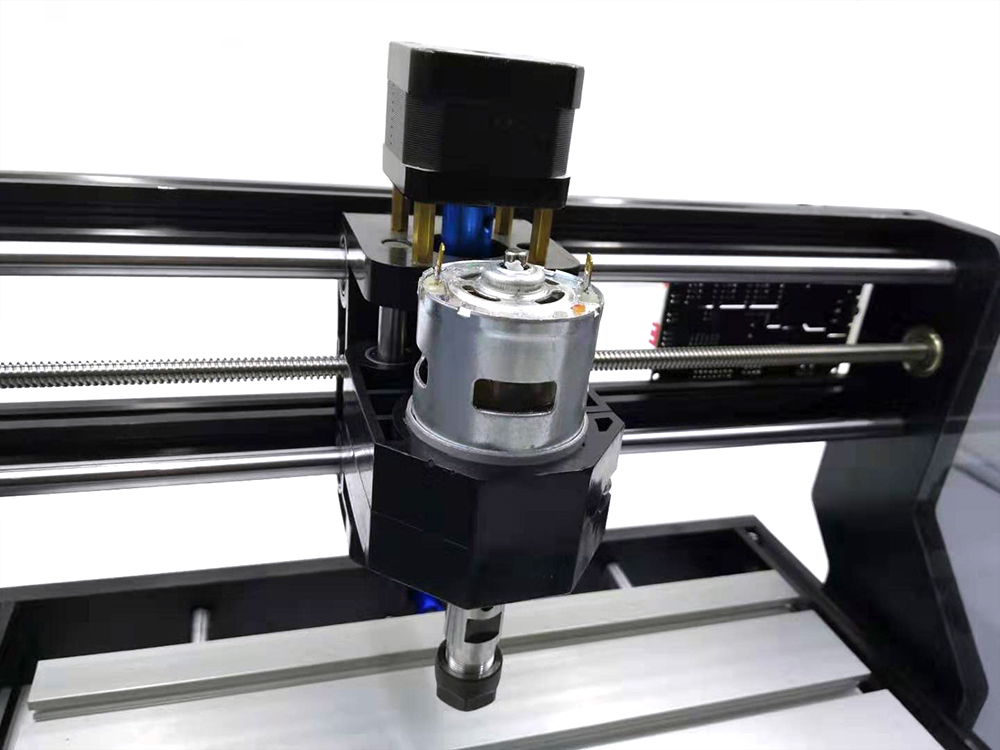

| Spindle | 775 spindle motor 24V: 10000r/min |
| Step motor | 1.3A 0.25N.m |
| Power supply | 24V 5A |
| Supported system | Windows XP/ Win 7/ Win 8/ Win10 Home |

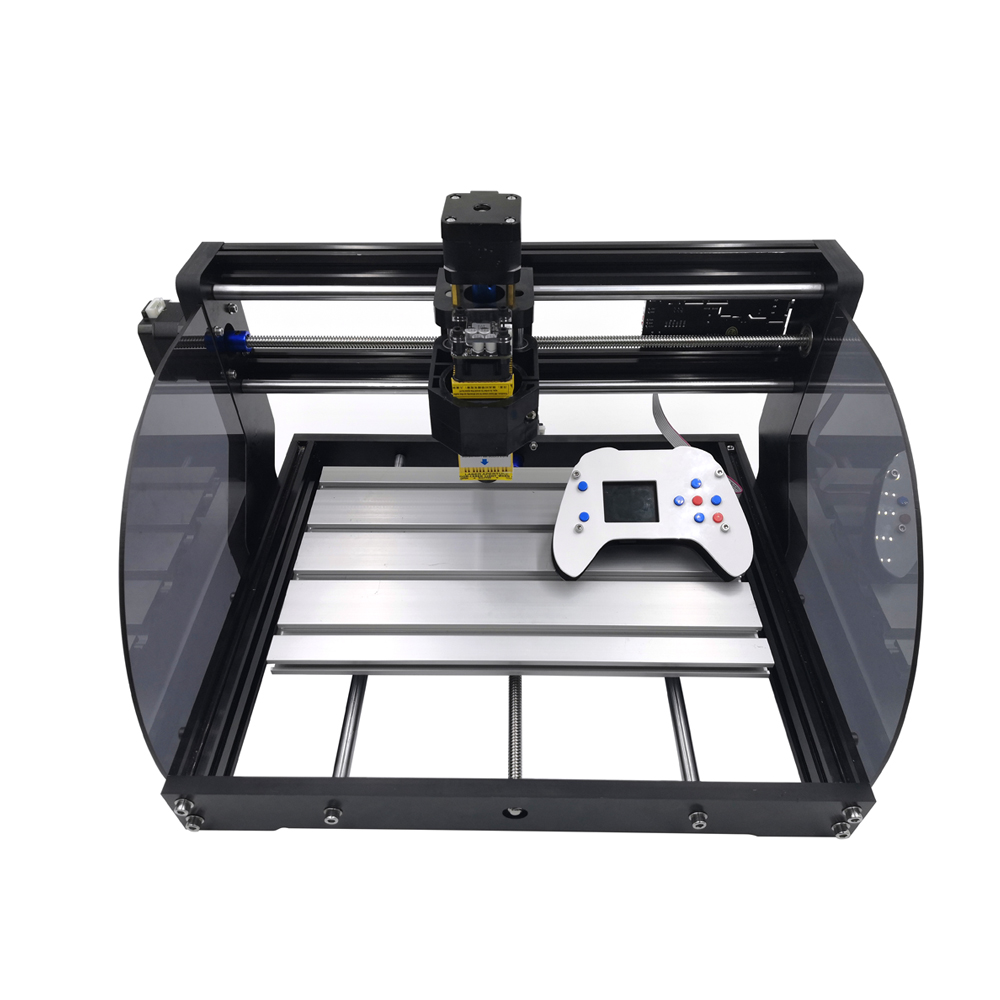

| Laser (options) | 0.5W 12V 405nm |
| 2.5W/5.5W/15W 12V 450nm | |
| (15W Can engrave on stainless steel) |

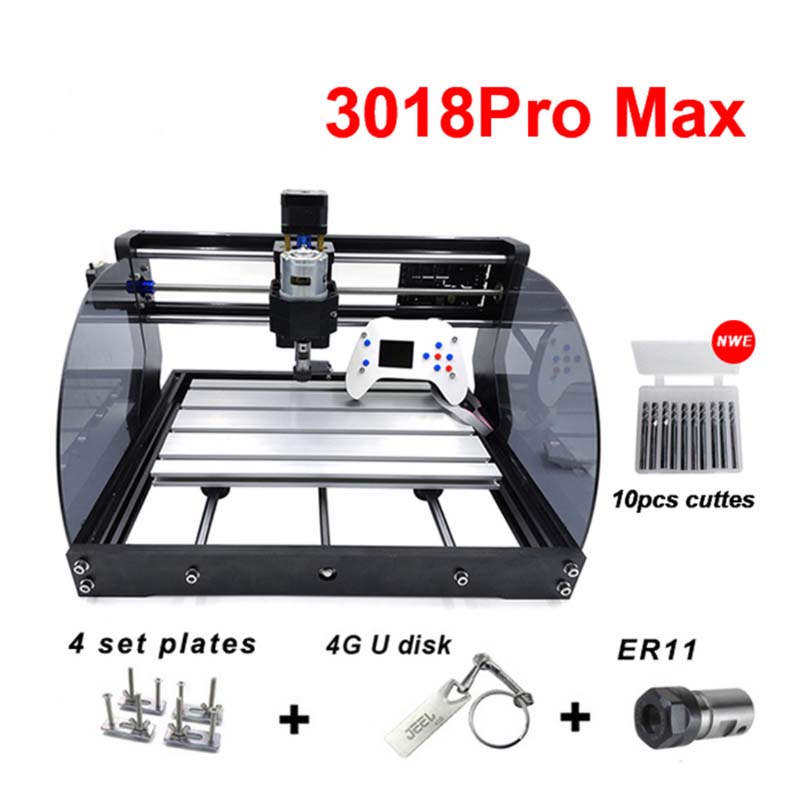

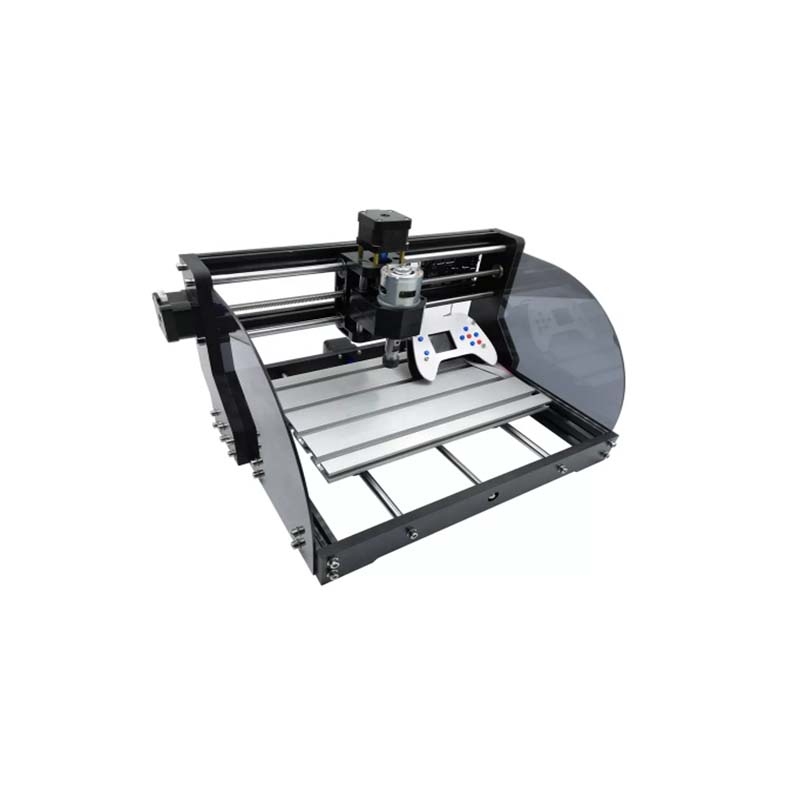

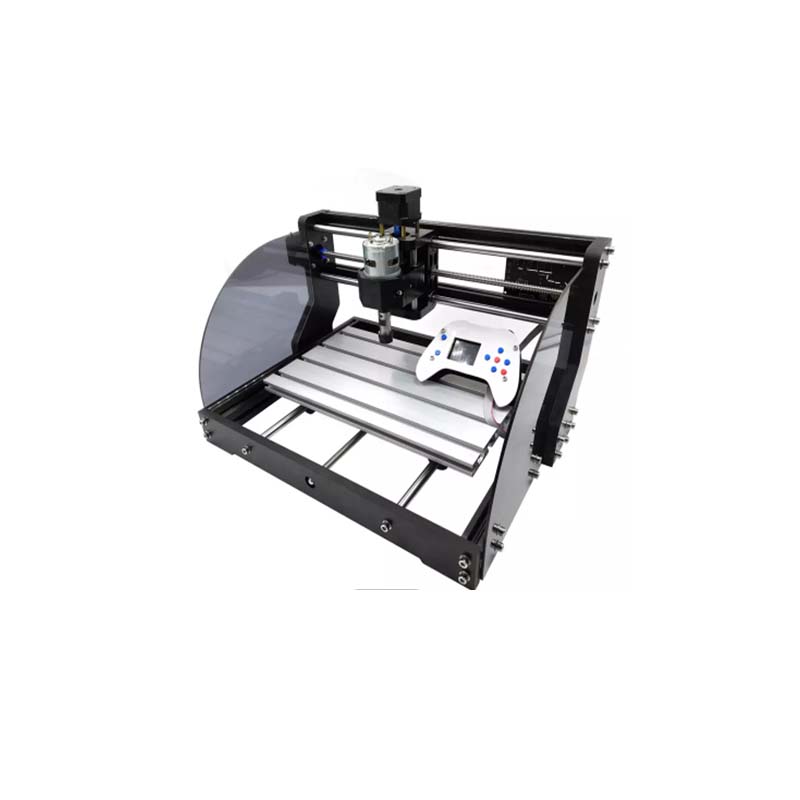

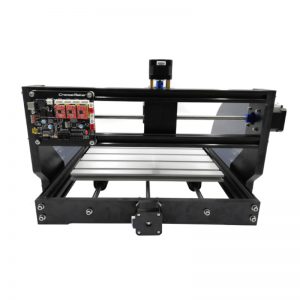

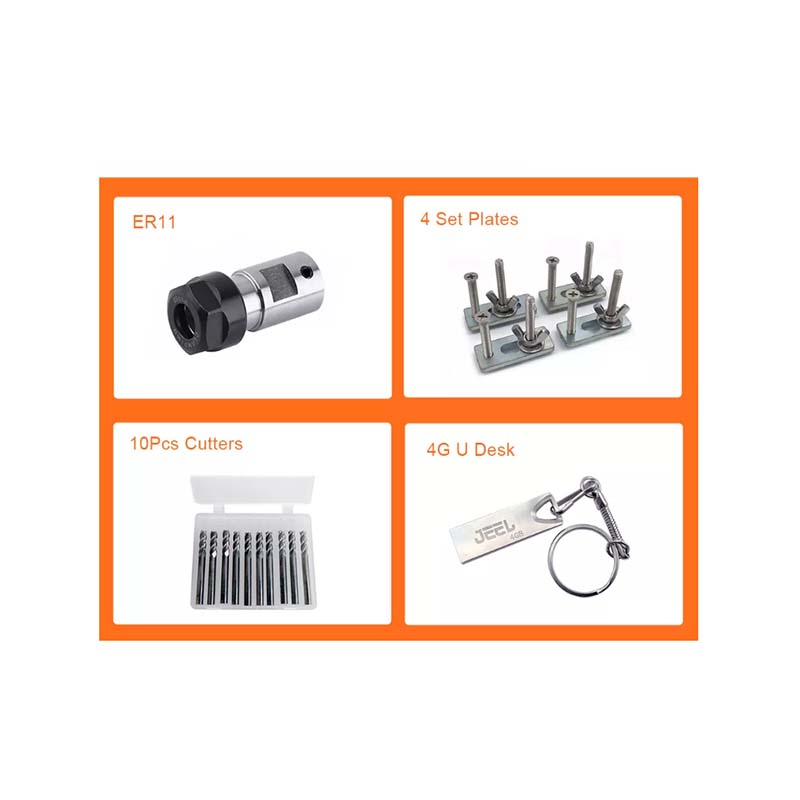

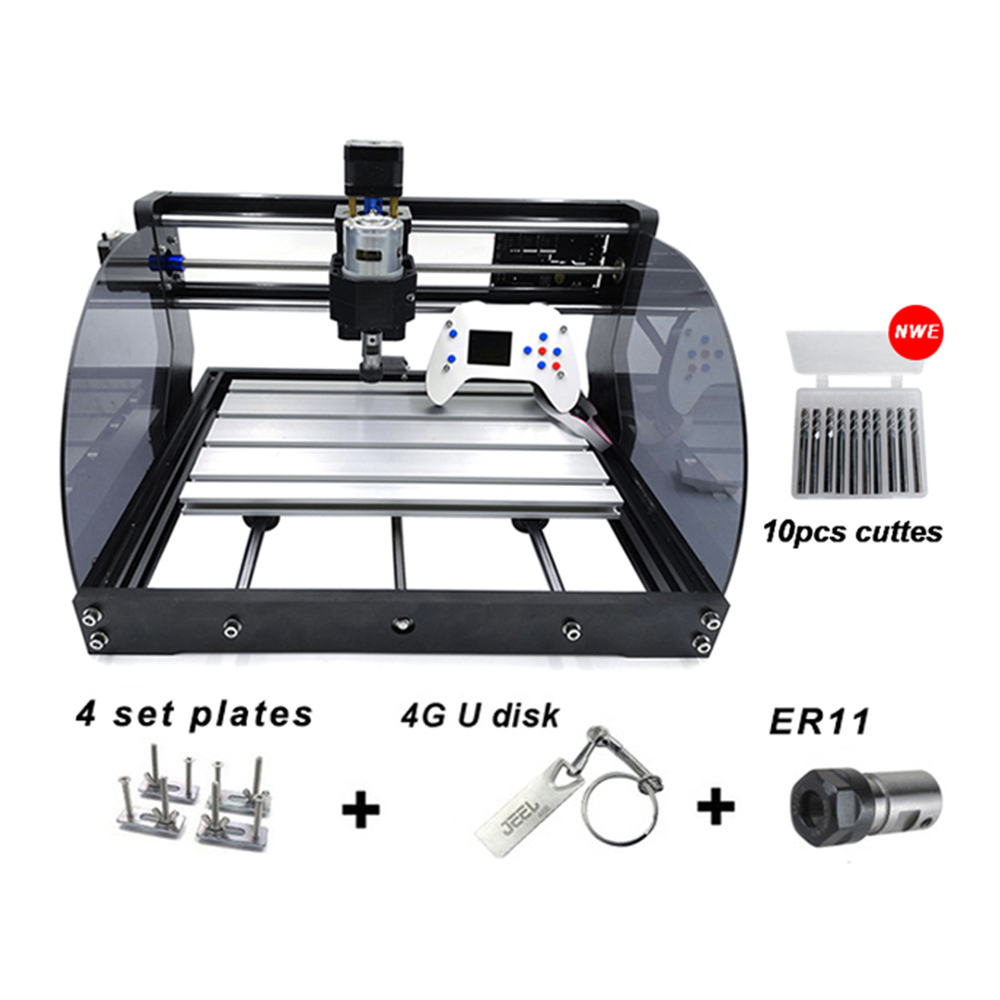

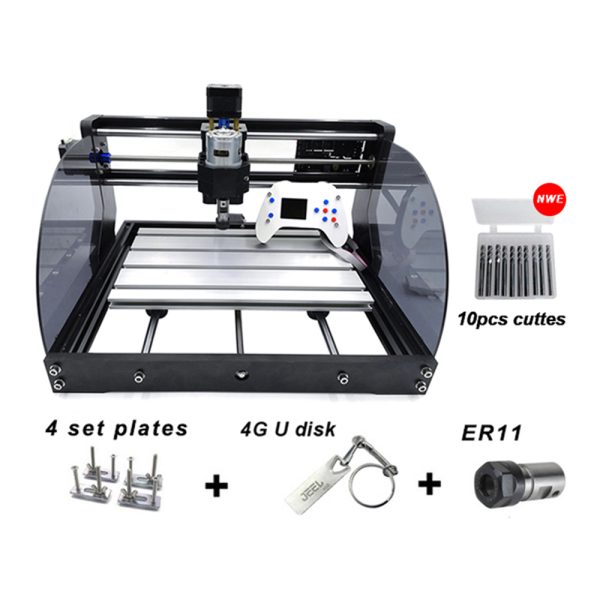

This machine comes as a kit. You need to assemble it yourself. All tools and part are included in the kit.
You can get the software ,contact us.
The software only support the Windows system.
The laser module have over 6,000 hours lifetime.
Wood, bamboo, plastic, paper, leather, rubber.
cork wood, paper, thin leather.
It can not engrave or cut on any metal.
Sorry that the Fixed laser power is not adjustable, but the engraving speed is adjustable.
It can work continuously about 45 minutes, after the laser mould cool down(about half of an hour), then start work again. Long time work continuously with shorten the laser module liftetime.

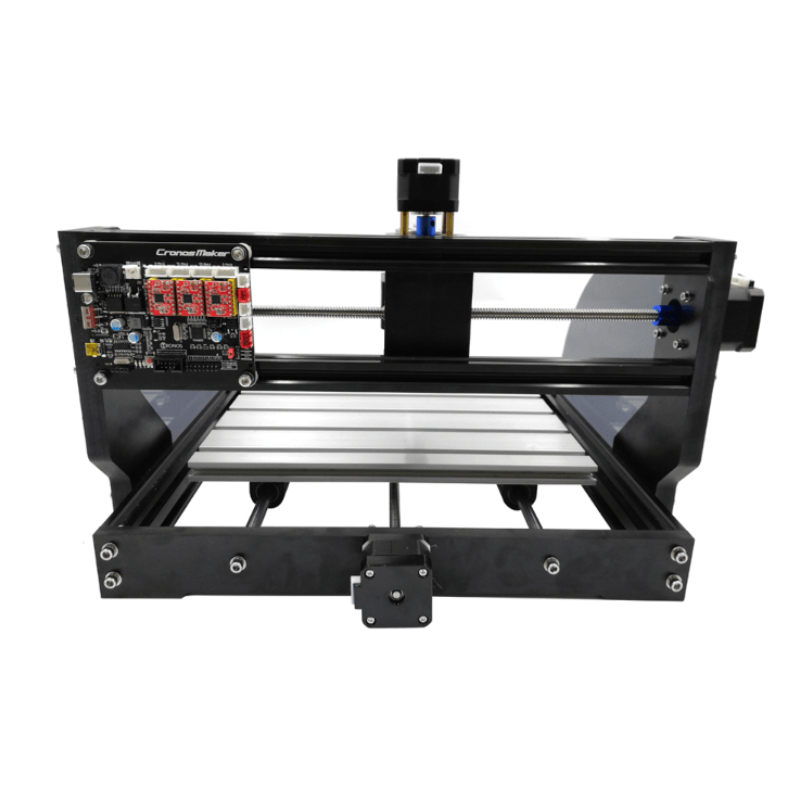

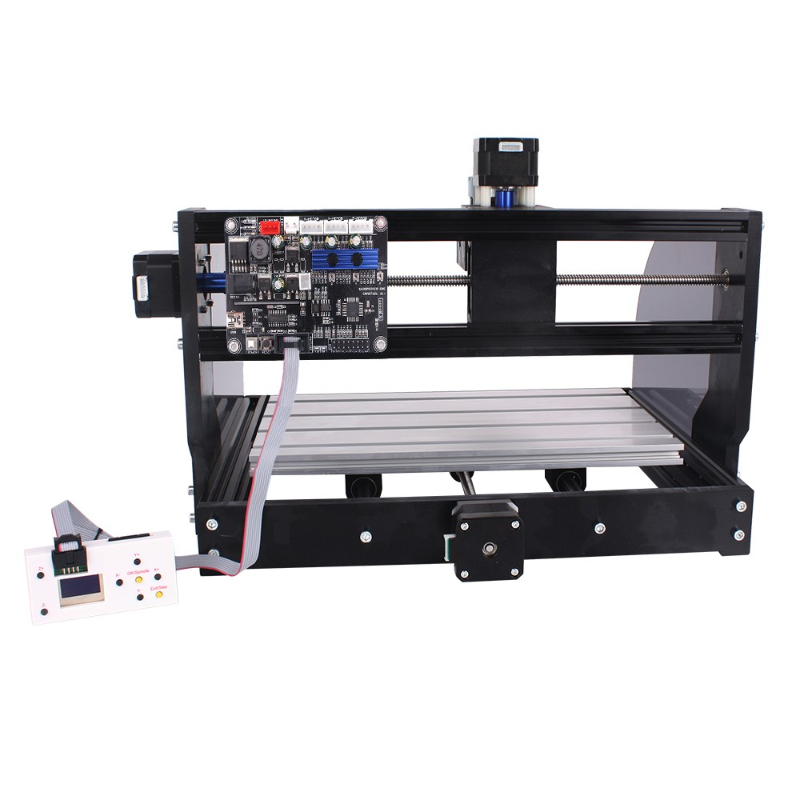

Fist of all, you need to plug the stepper motor power cable to the controller board, then installl the software and the driver, power supply the machine,that’s all.
