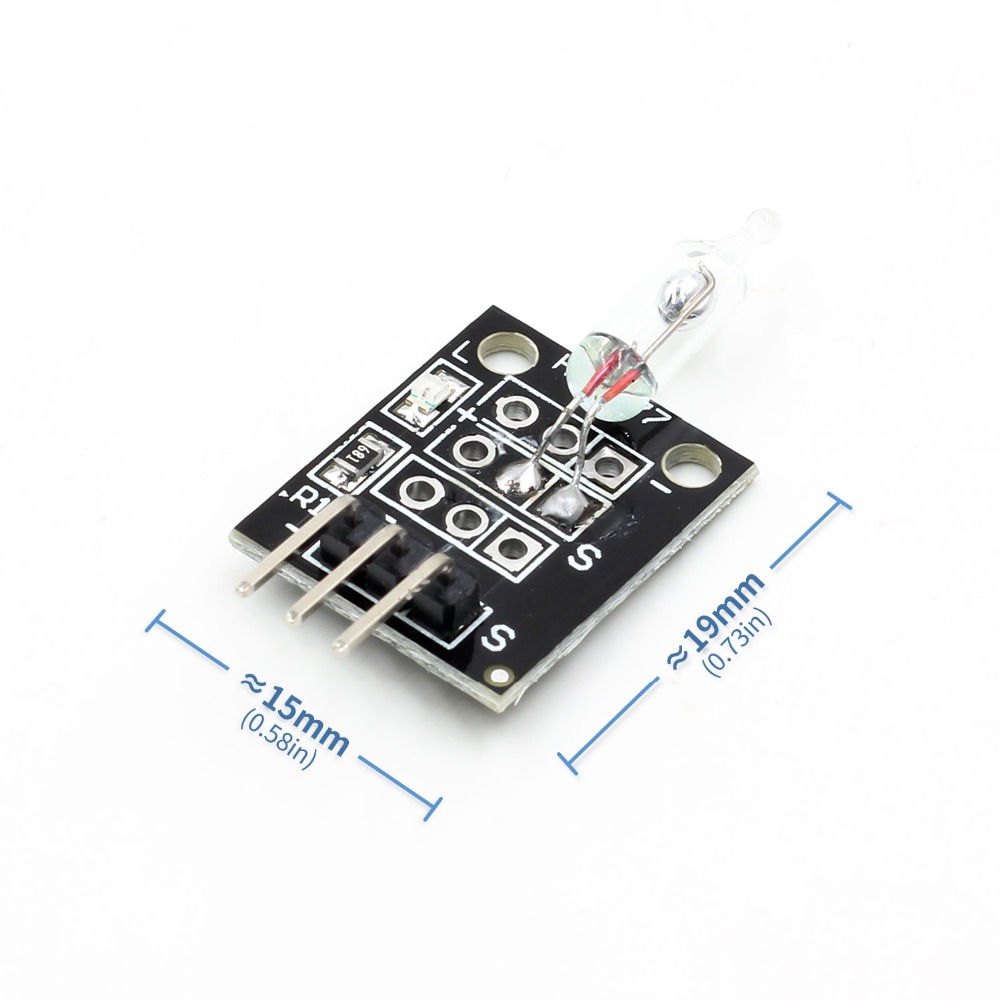

| Dimensions | 1.9 × 1.5 × 1 cm |
|---|---|
| Operating Voltage | 3.3V ~ 5.5V |

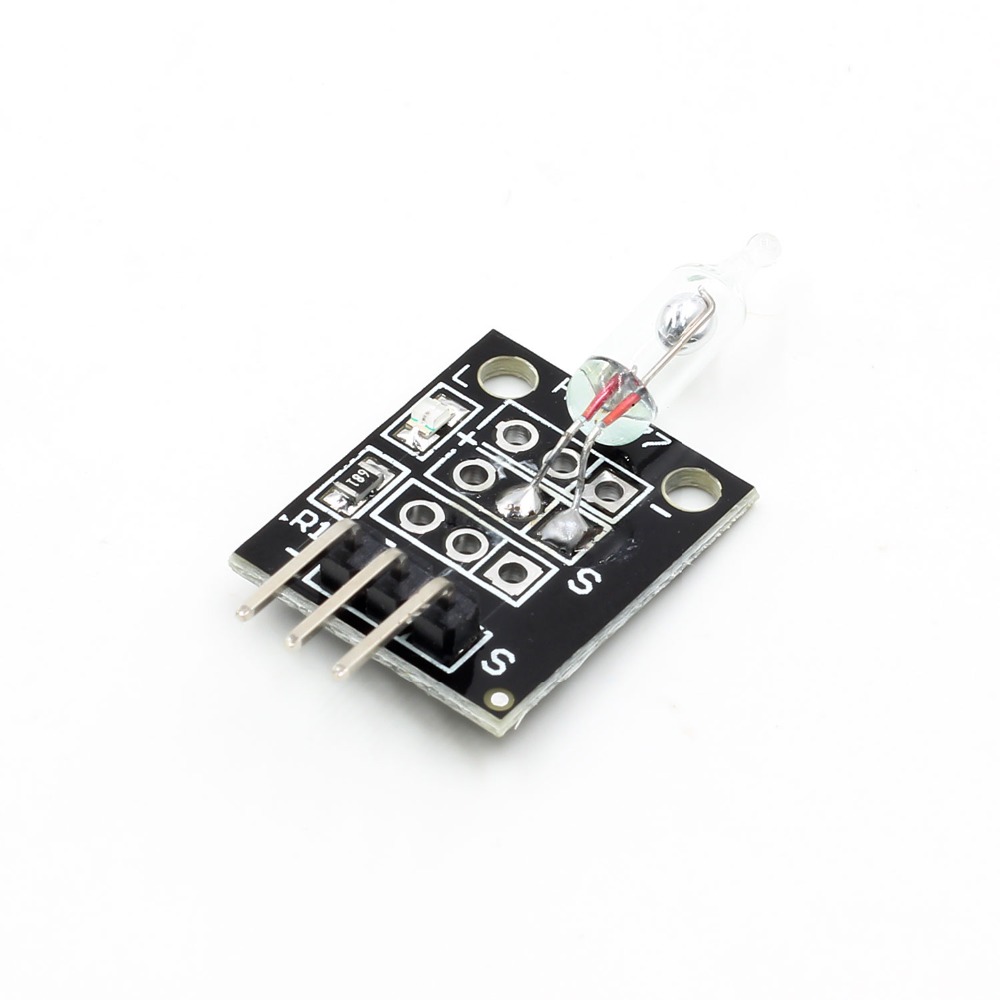

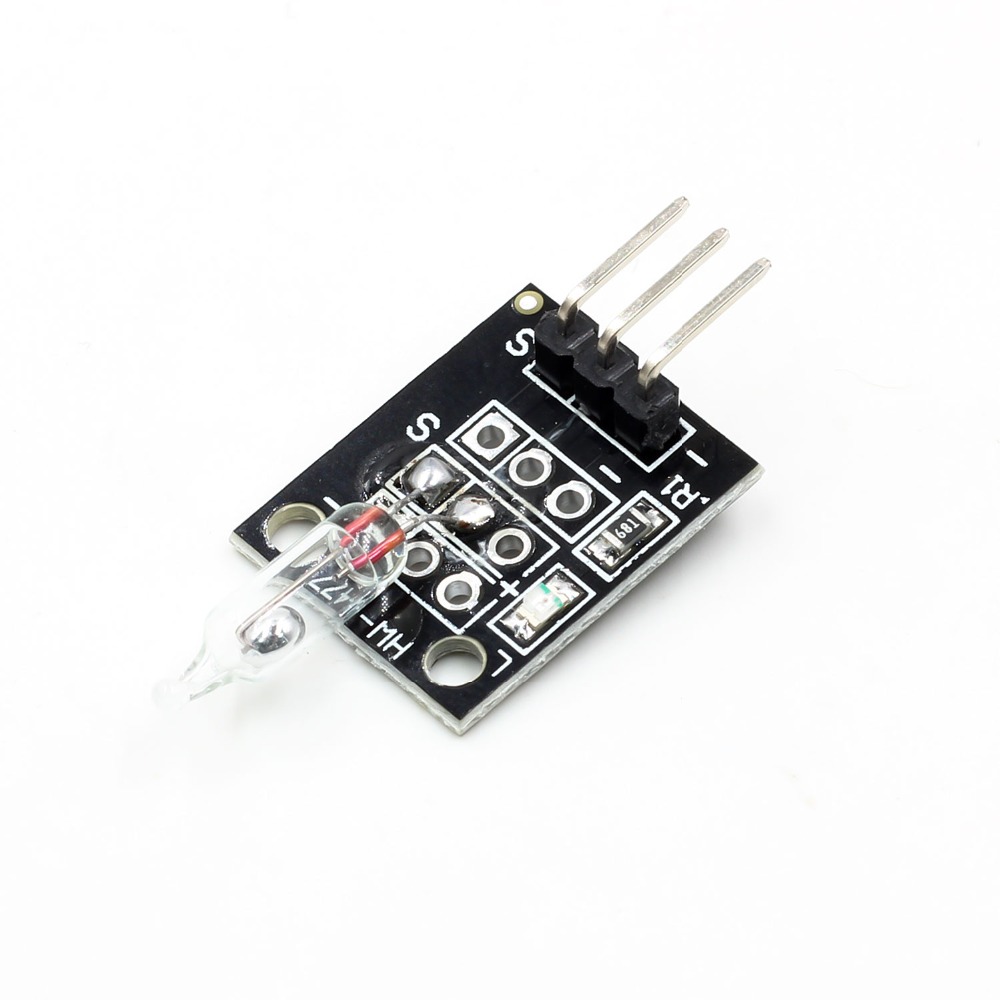

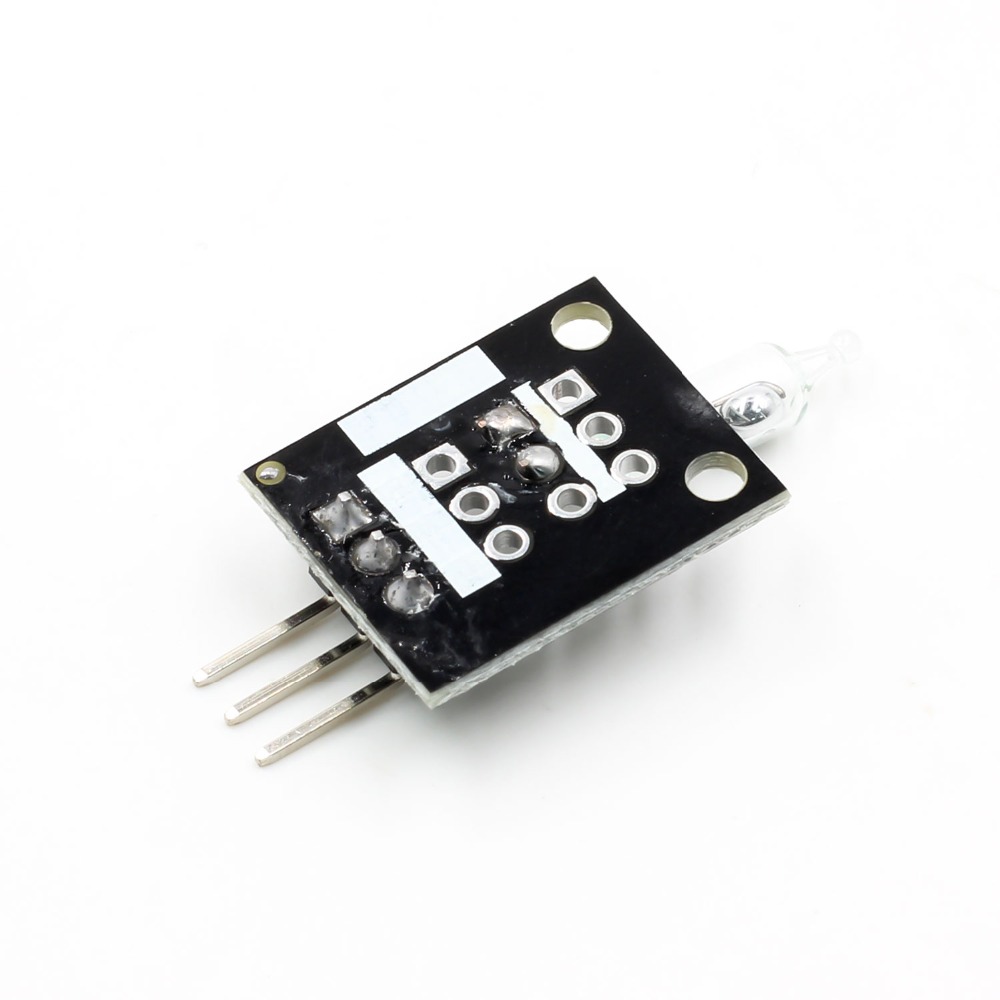

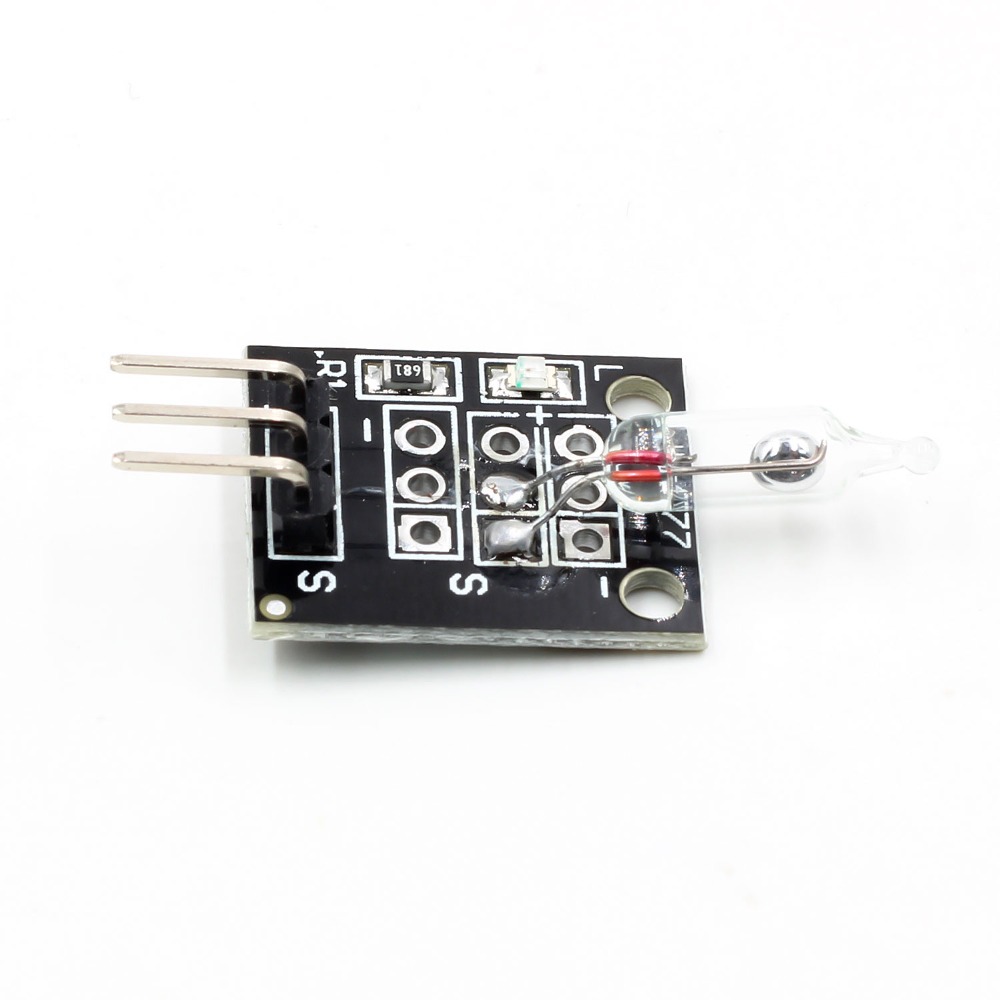

The Mercury switch module KY-017 is a switch that responds to movement. It uses a small mercury ball that completes the circuit when the module is tilted.

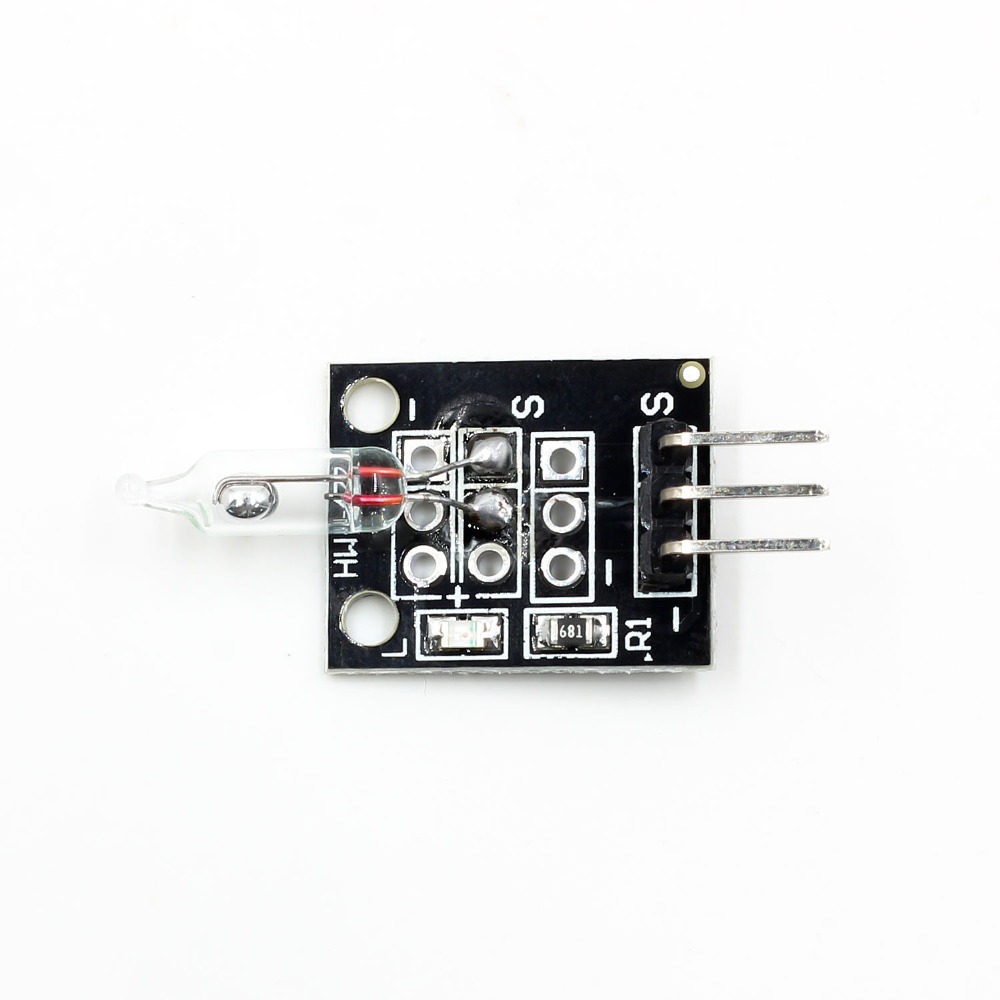

This module consists of a mercury switch, a 680Ω resistor and a LED that will light up when tilt is detected. The mercury ball will open/close the circuit when the module is rotated.
Compatible with many electronics platforms like Arduino Raspberry Pi, ESP32 and others. For less sensitive tilt detection use the KY-020 tilt switch.
CONNECTION DIAGRAM
Connect the module power line (middle) and ground (-) to +5 and GND on the Arduino respectively. Connect signal (S) to pin 3.
| ky-017 | Arduino |
|---|---|
| S | Pin 3 |
| middle | +5V |
| – | GND |
