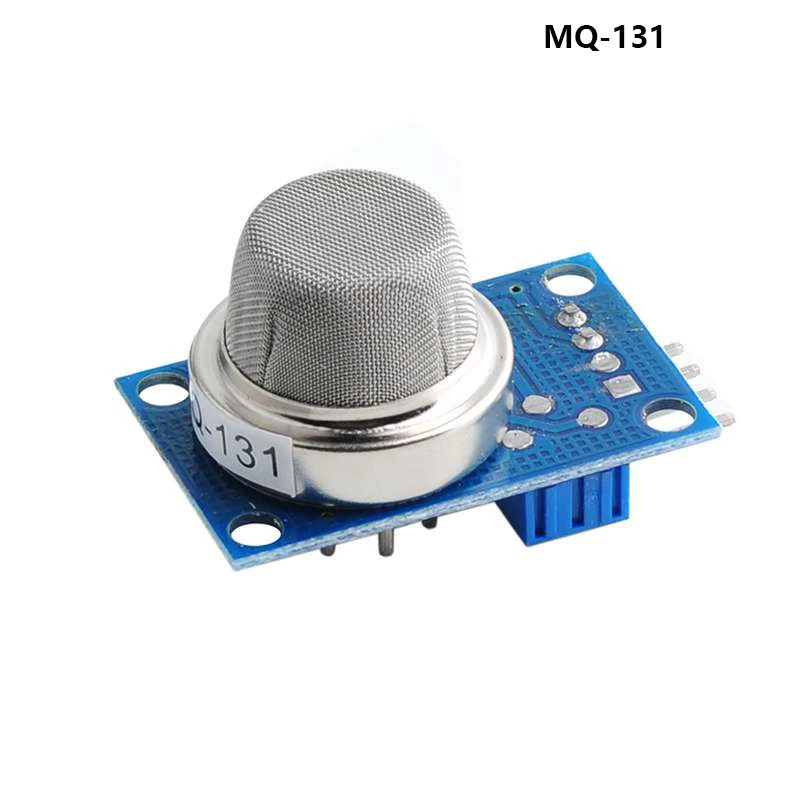

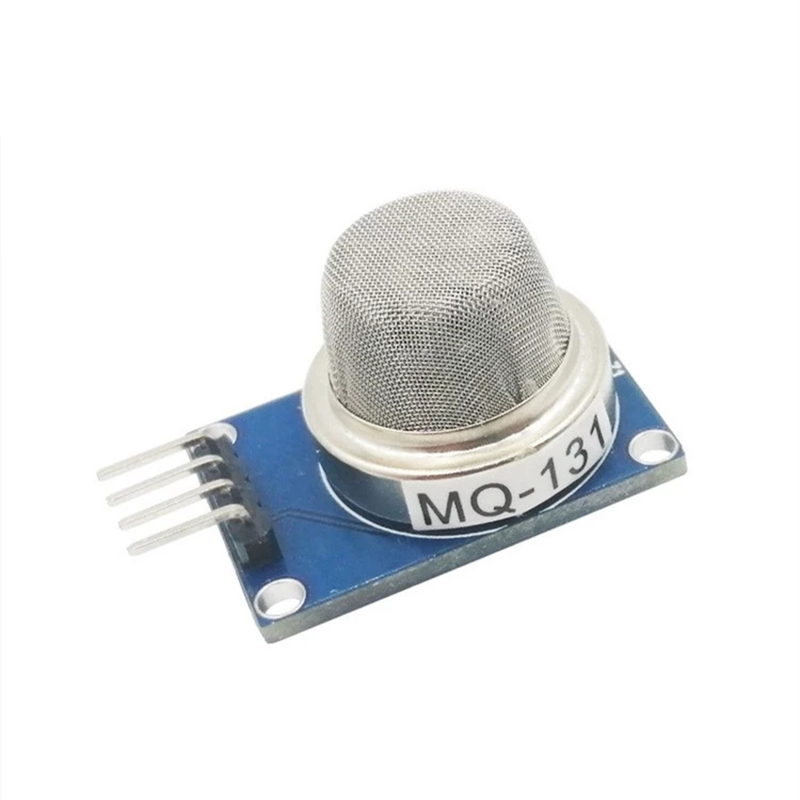

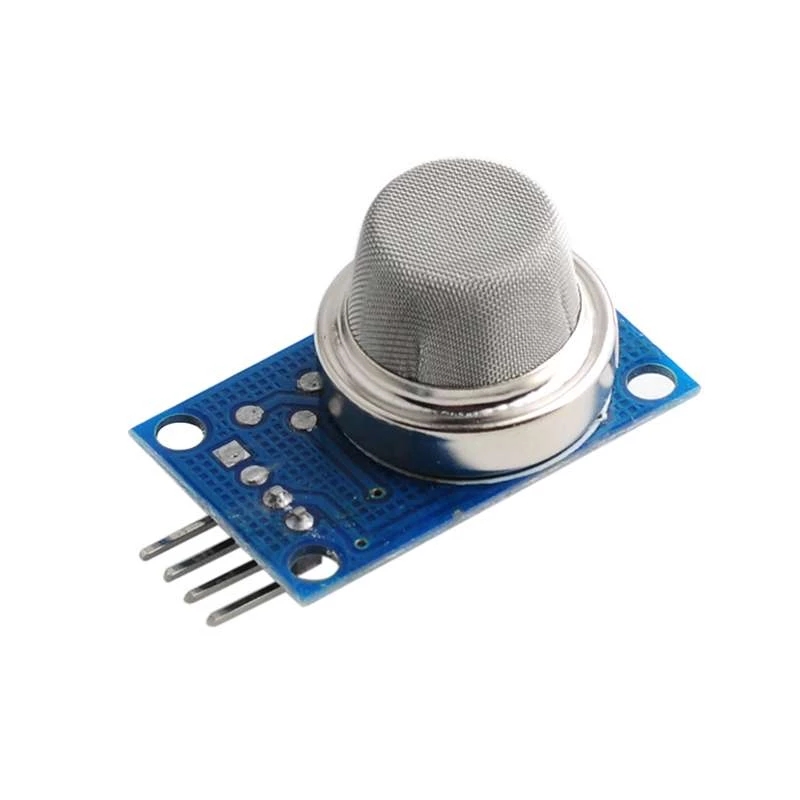

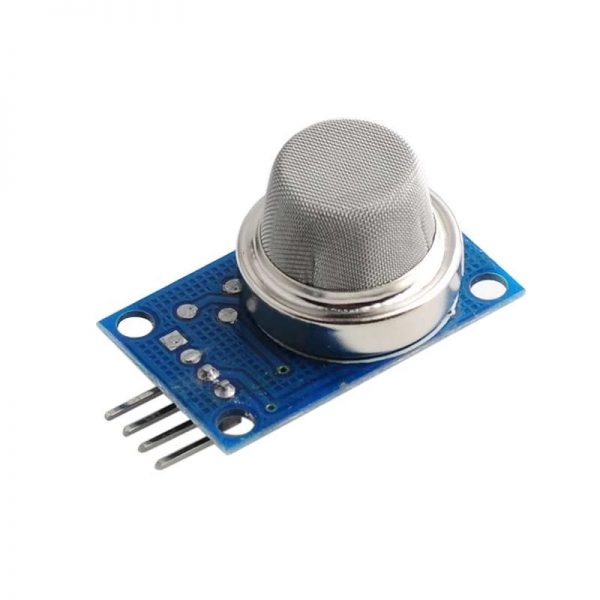

MQ-131 High concentration ozone gas detection sensor module

SKU: FA3094 Tag:
Weight 0.018 kg
Dimensions 3.3 × 3.185 × 1.96 cm
Feature 1

The working voltage: DC 5V
Feature 2

signal output indicator light
Feature 3

double signal (analog output and TTL output level)
Feature 4

TTL Output valid signal low; (output low when the signal light, can be connected to the IO microcontroller
Feature 5

The analog output decreases with increasing concentration, the higher the concentration, the lower the voltage
Feature 6

Ozone gas has high sensitivity ( High concentration probe 10ppm-1000ppm
Features
  • The working voltage: DC 5V
  • signal output indicator light
  • double signal (analog output and TTL output level)
  • TTL Output valid signal low; (output low when the signal light, can be connected to the IO microcontroller
  • The analog output decreases with increasing concentration, the higher the concentration, the lower the voltage
  • Ozone gas has high sensitivity ( High concentration probe 10ppm-1000ppm

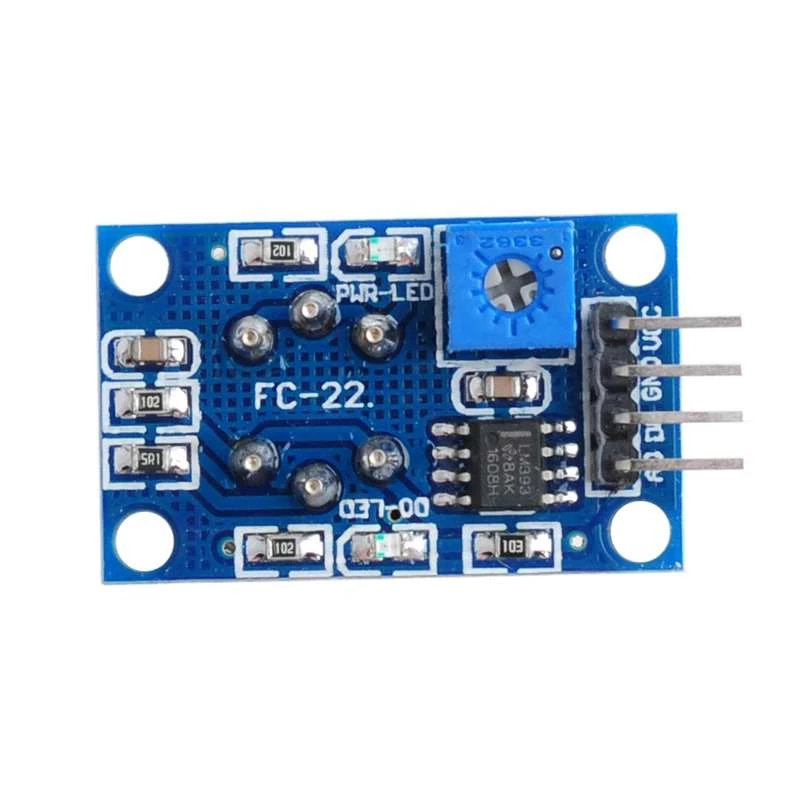

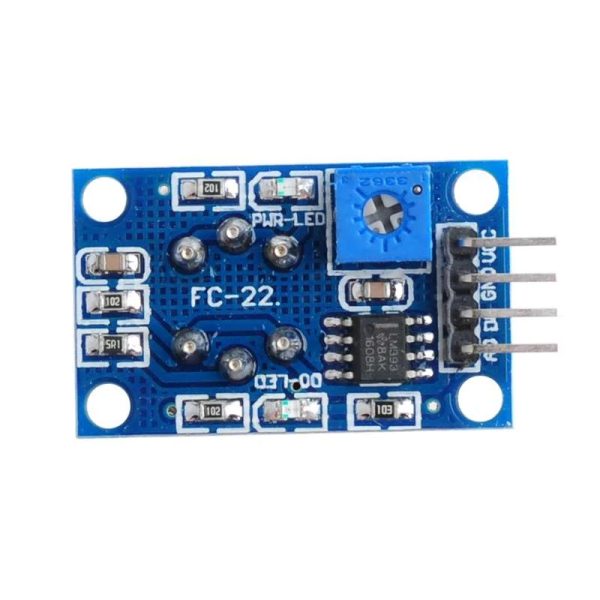

Connection wire
  • Made VCC: DC 5V power supply
  • GND: power supply
  • DO: TTL output
  • AO: analog output 0-5V voltage
Package Includes
  • 1 x MQ-131 MODULE HIGH CONCENTRATION OZONE GAS DETECTION SENSOR

MQ131 gas ozone detection sensor module (with analog and TTL level output). When the ozone gas exists, the sensor’s conductivity gets lower along with the gas concentration rising. Users can convert the change of conductivity to correspond output signal of gas concentration through potentiometer. MQ131 ozone gas sensor has high sensitivity to ozone, and also has sensitivity to strong oxide such as Cl2, NO2 &etc. It responses oppositely to organic interference gases.
