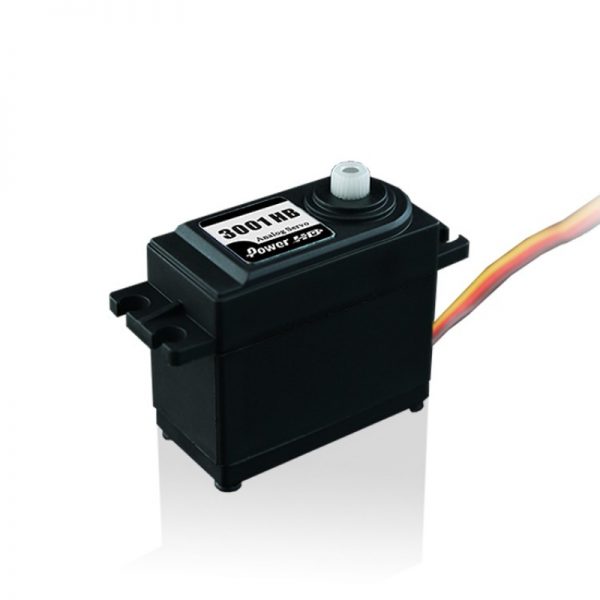

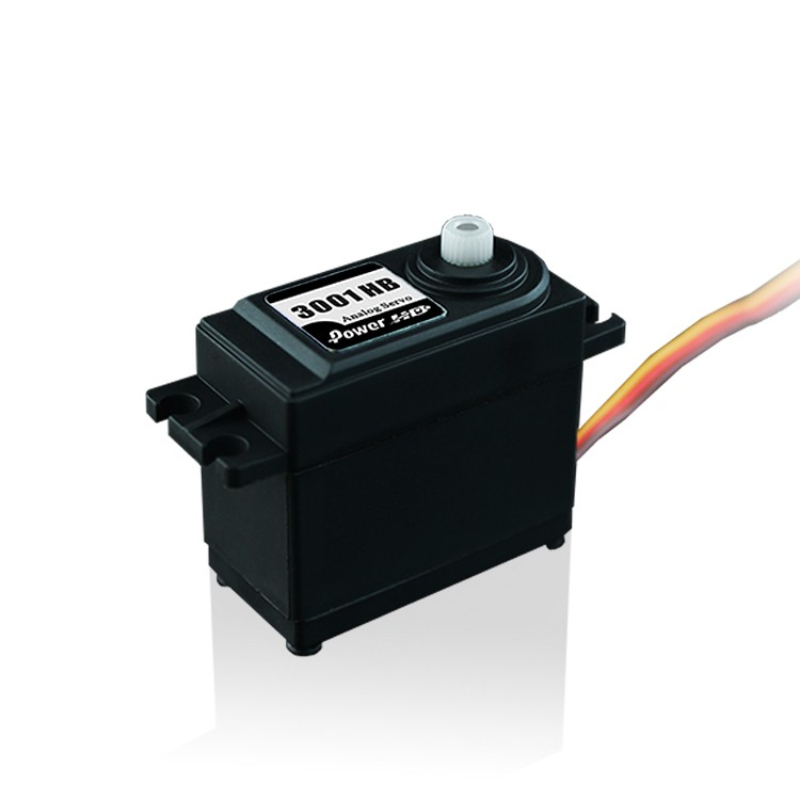

Power HD-3001HB 4.4KG standard servo 43g can replace FUTABA S3003 S3001

SKU: FA6040-3 Tag:
Weight 0.043 kg
Dimensions 4.07 × 3.94 × 2.05 cm
Torque(4.8V)

3.5 kg-cm (48.6 oz/in)

Torque(6.0V)

4.4 kg-cm (61.1 oz/in)

Speed

0.14 sec (4.8V) │ 0.12 sec (6.0V)

Operating Voltage

4.8 ~ 6.0 DC Volts

Bearing Type

Ball Bearing x 1

Motor Type

DC Motor

Gear Type

Plastic

Operating Temperature

-20℃~60℃

Working frequence

1520μs / 50hz



Parameters

Torque(4.8V): 3.5 kg-cm (48.6 oz/in)
Torque(6.0V): 4.4 kg-cm (61.1 oz/in)
Speed: 0.14 sec (4.8V) │ 0.12 sec (6.0V)
Operating Voltage:4.8 ~ 6.0 DC Volts
Weight: 43.0 g (1.52 oz)
Bearing Type:Ball Bearing x 1
Motor Type:DC Motor
Gear Type:Plastic
Operating Temperature:-20℃~60℃
Working frequence:1520μs / 50hz
Size:40.7 x 20.5 x 39.5 mm ( 1.60 x 0.81 x 1.56 in)
