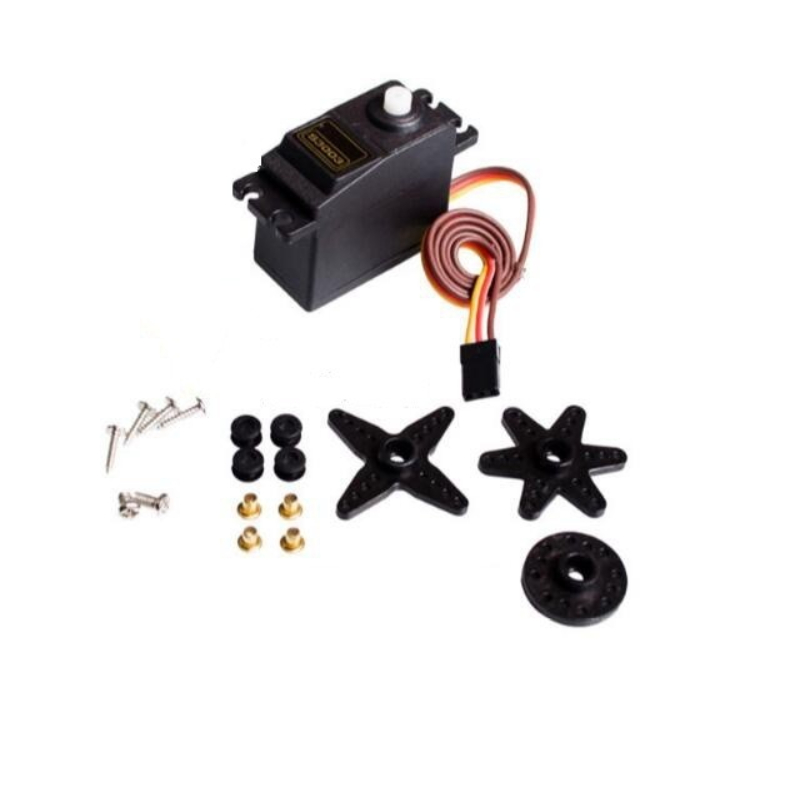

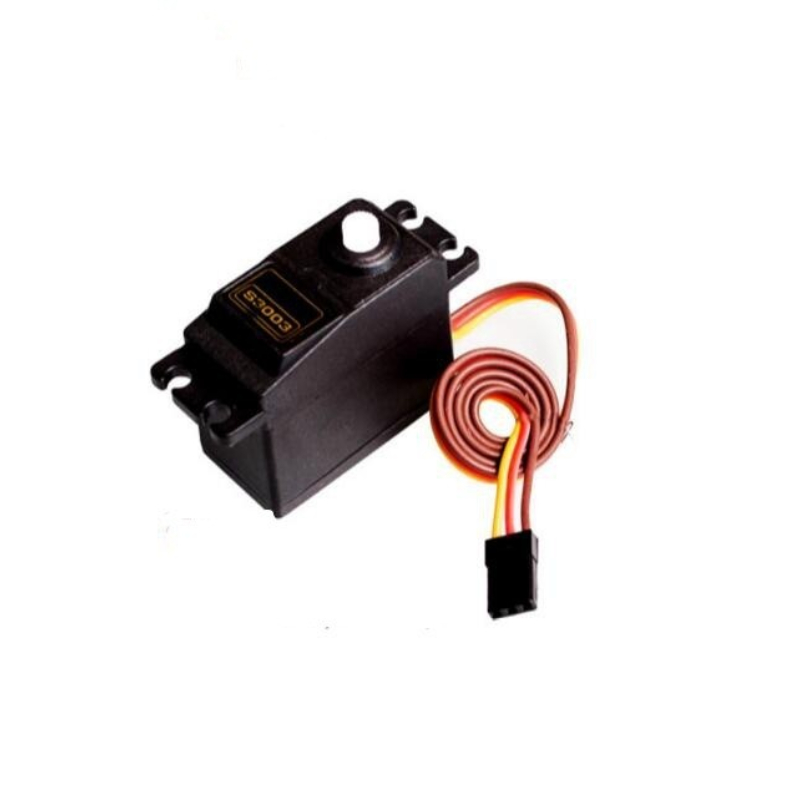

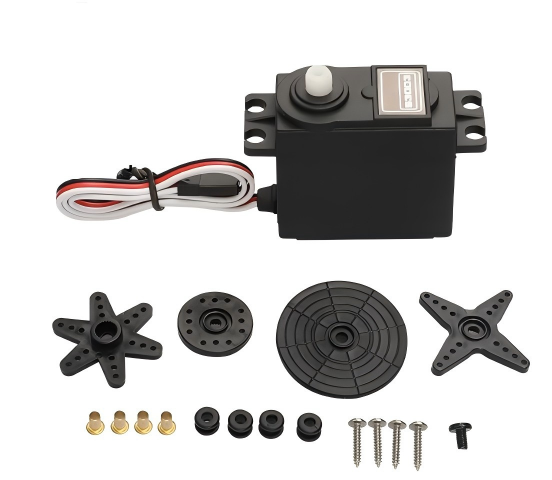

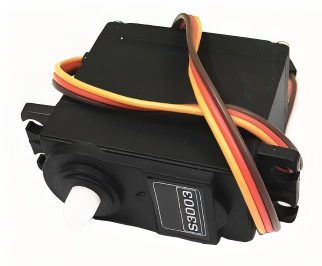

Servo S3003 12KG

SKU: FA6037 Tag:
Weight 0.056 kg
Dimensions 4 × 4 × 2 cm
Model

Futaba S3003

Control System

+Pulse Width Control

Operating Frequency

20ms Period / 50Hz (Analog Control)

(RX) Required Pulse

3.0 ~ 5V Peak-to-Peak Square Wave

Operating Voltage

4.8 ~ 6V/DC

Operating Temperature Range

-0 to +55 Degrees C

Operating Speed ​​(4.8V)

0.200 sec/60° Degree (no load)

Operating Speed

​​(6V) 0.160 sec/60° Degree (no load)

Stall Torque (4.8V)

9.4kg/cm

Stall Torque (6V)

11kg/cm

Motor Type

Brushed Motor

Potentiometer Driver

Direct Driver

Bearing Type

No Bearing

Gear Type

Plastic Gear

This Servo S3003 12KG 180 degree normal quality motor gives value to your money. This S3003 servo is also known for its high specs at a very affordable price to everyone!!!

This motor shows some of the excellent operational characteristics so we are selling it as Standard Quality Servo Motor. The good optimized performance and reliability of this servo have made it the favorite choice of many RC hobbyists.

They are compatible with all the applications that use the genuine Futuba S3003 standard Servo because of their same size, comparable quality, and optimized performance.

It equips Carbon Fiber Gears which makes the servo motor much lighter than same metal gear motor. For small load applications using the metal gear servo motor adds on unnecessary weight, so we suggest using this lightweight plastic gear servo motors. It also equips high-quality bearings which ensure smooth and reliable operations.

The Futuba S3003 Servo rotates 90° in each direction, hence it is a 180° rotation servo. It is a Digital Servo Motor which receives and processes PWM signal faster and better. It equips sophisticated internal circuitry that provides good torque, holding power, and faster updates in response to external forces.

They are packed within a tight sturdy plastic case which makes them water and dust resistant which is a very useful feature in RC planes, Boats, and RC Monster Trucks etc. It equips 3-wire JR servo plug which is compatible with Futaba connectors too.

They are compatible with all the applications that use the genuine Futuba S3003 standard Servo because of their same size, comparable quality, and optimized performance.
