SIM800L GPRS GSM module micro-sim card core board quad-band TTL serial port is ESP8266 ESP32

SKU: FA2029 Tag:
Weight 0.010 kg

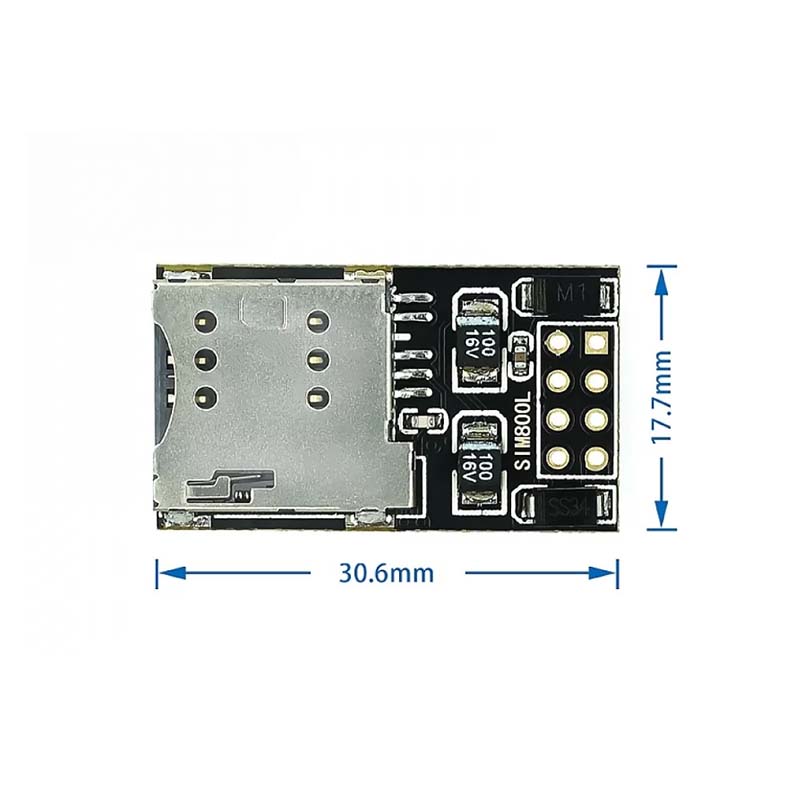

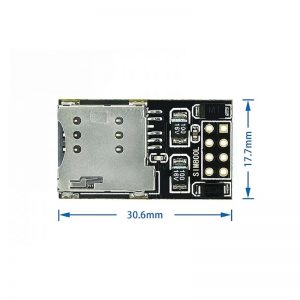

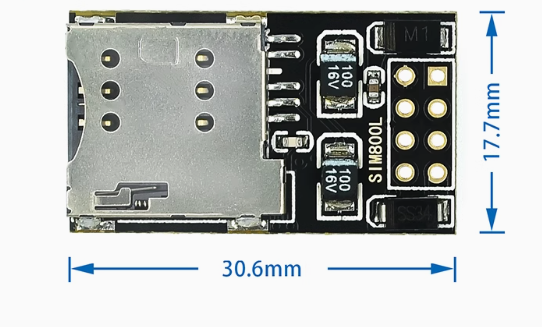

Dimensions 3.06 × 1.77 cm
Feature 1

ESP style and size board shape
Feature 2

Input Voltage：DC 6 V
Feature 3

Quad-band 850/900/1800/1900MHz
Feature 4

Make and receive voice calls using a headset or an external speaker
Feature 5

Send and receive SMS messages
Feature 6

Send and receive GPRS data (TCP/IP, HTTP, etc.)
Feature 7

Scan and receive FM radio broadcasts
Feature 8

AT command interface with “auto baud” detection
Feature 9

Lead out buzzer and vibrational motor control port

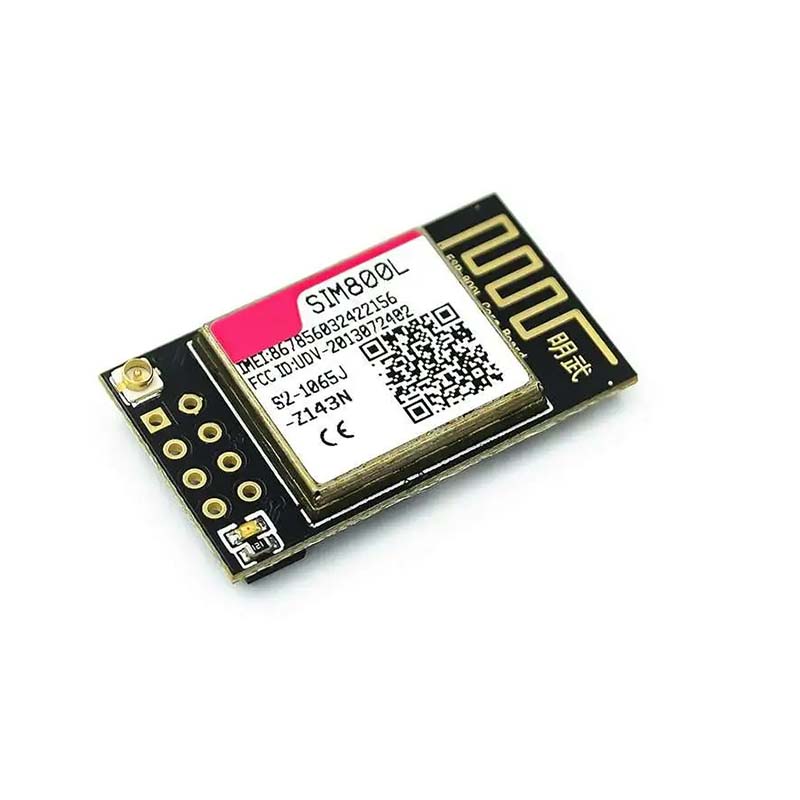

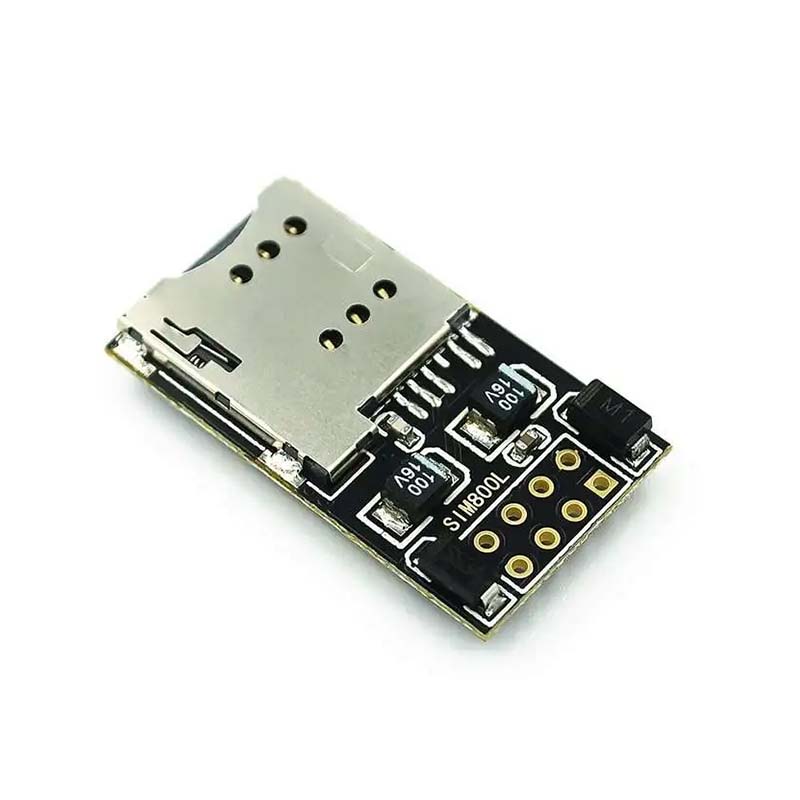

SIM800L GSM / GPRS module is based on SIM800L by SIMCOM. It has the same dimensions and shape like ESP seriesboards. Also it is powered by DC  6V supply. making it suitable for applications where size matters.

SIM800L GSM / GPRS module supports quad-band GSM/GPRS network including SIM800L GPRS and SMS message data. The SIM800L GSM / GPRS board features compact size and low current consumption. With power saving technique, the current consumption is as low as 1mA in sleep mode. It communicates with microcontroller via UART port, supports command. It’s operating voltage is 5 ~ 6V.



This is a small SIM800L GPRS GSM Module Micro SIM Card Core Board Quad-band TTL Serial Port for ESP8266 ESP32. This module is a miniature GSM modem, which can be integrated into a great number of IoT projects. It is used in GSM-based projects, GPS-based projects, Robotics projects, or 8051/AVR/ARM/PIC/Arduino/Raspberry-pi-based projects.
