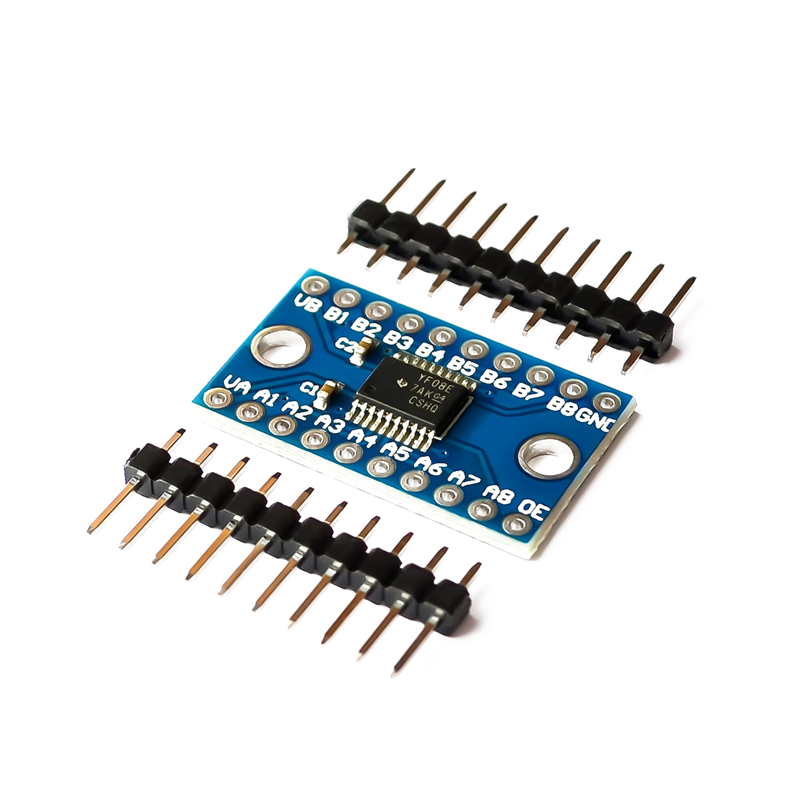

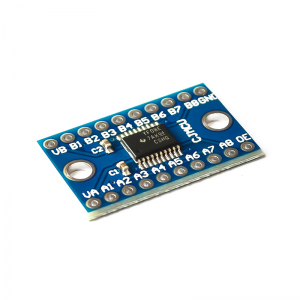

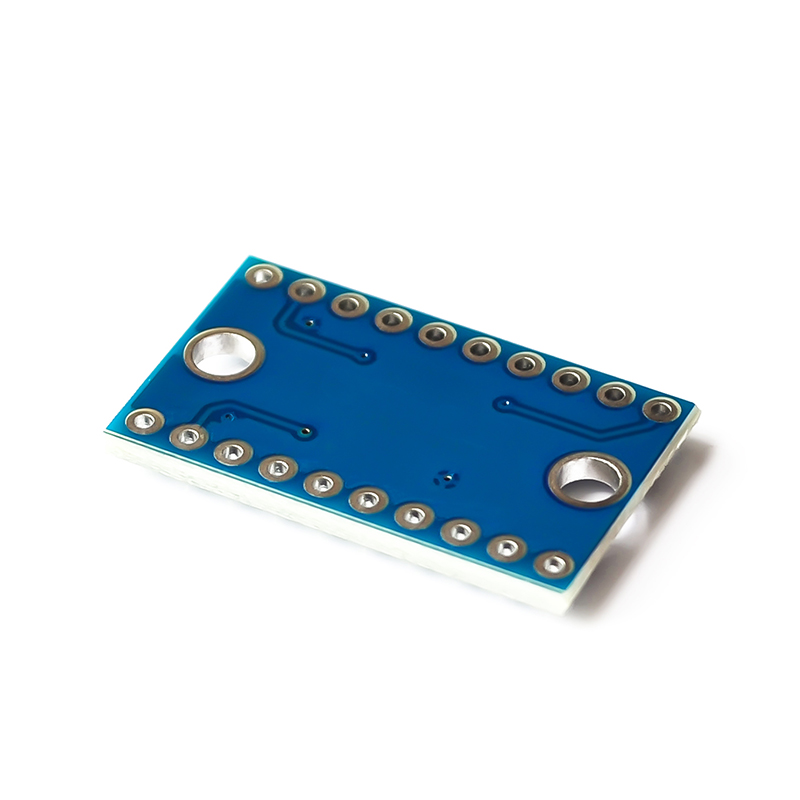

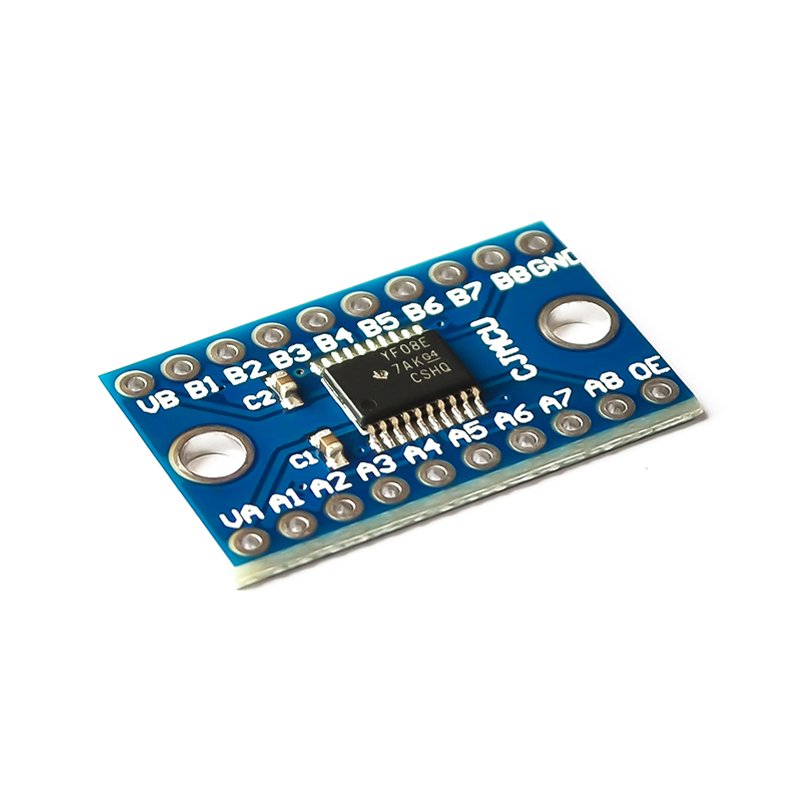

TXS0108E High-speed full-duplex 8-channel level conversion module 8-bit bidirectional voltage converter

SKU: FA2011-0 Tag:
Weight 0.010 kg

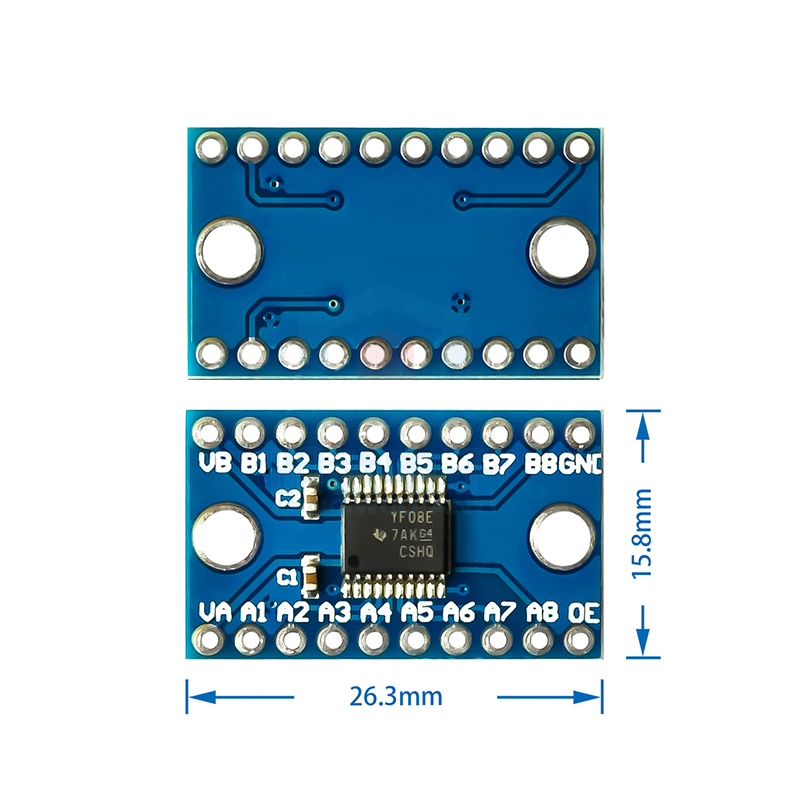

Dimensions 2.63 × 1.58 cm
Feature 1

Provides two-way communication capabilities
Feature 2

VCCA terminal support voltage 1.2V-3.6V
Feature 3

VCCB end supports voltage 1.65v-5.5v
Feature 4

Can provide common alternative conversion capabilities such as 3.3-5V 1.8-3.3v

Parameters
Module using chip: TXS0108E
High-speed full-duplex 8-channel convertible module
Provides two-way communication capabilities
VCCA terminal support voltage 1.2V-3.6V
VCCB end supports voltage 1.65v-5.5v
Can provide common alternative conversion capabilities such as 3.3-5V 1.8-3.3v

Main application, 5V single chip and 3.3V module 3.3V single chip and 5V module, compatible with communication support
Continuous conversion of MCU and SD card communication
SCM and iic, spi serial device serial conversion
OE enables IO is highly acceptable and effective. It is recommended to connect the IO port at the low voltage side.
