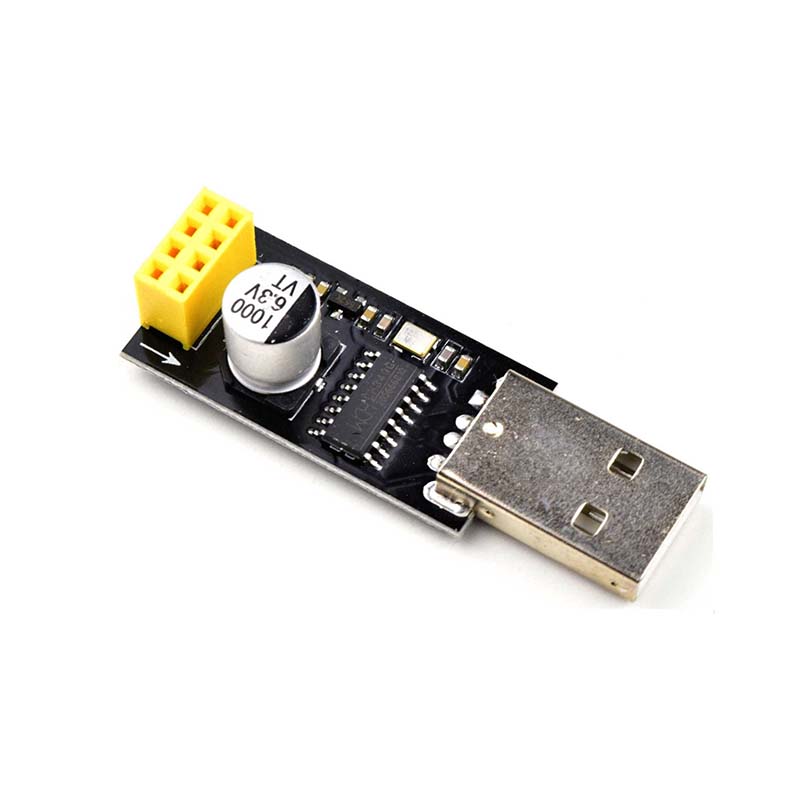

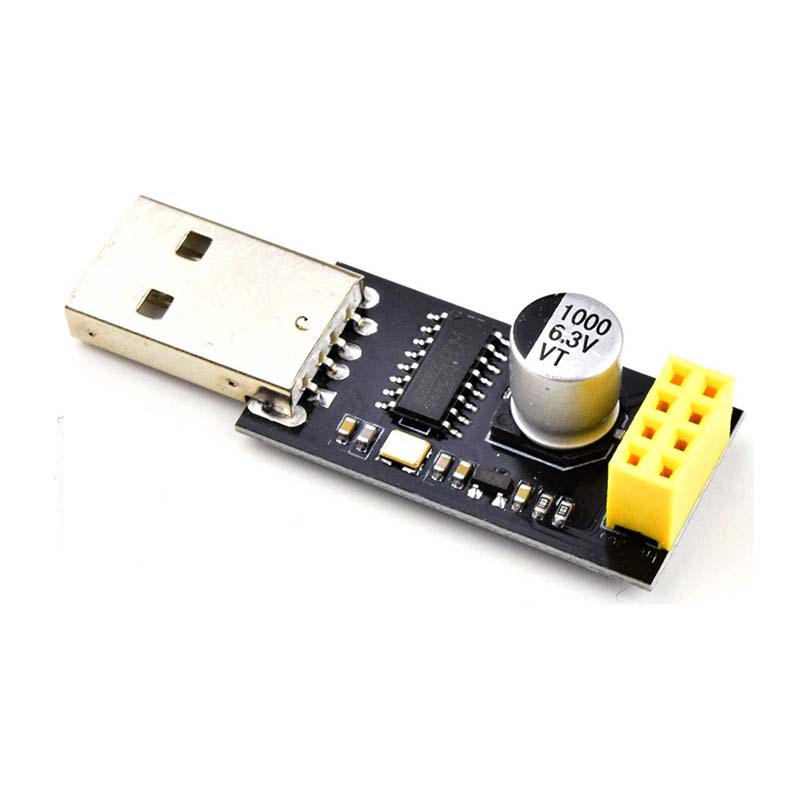

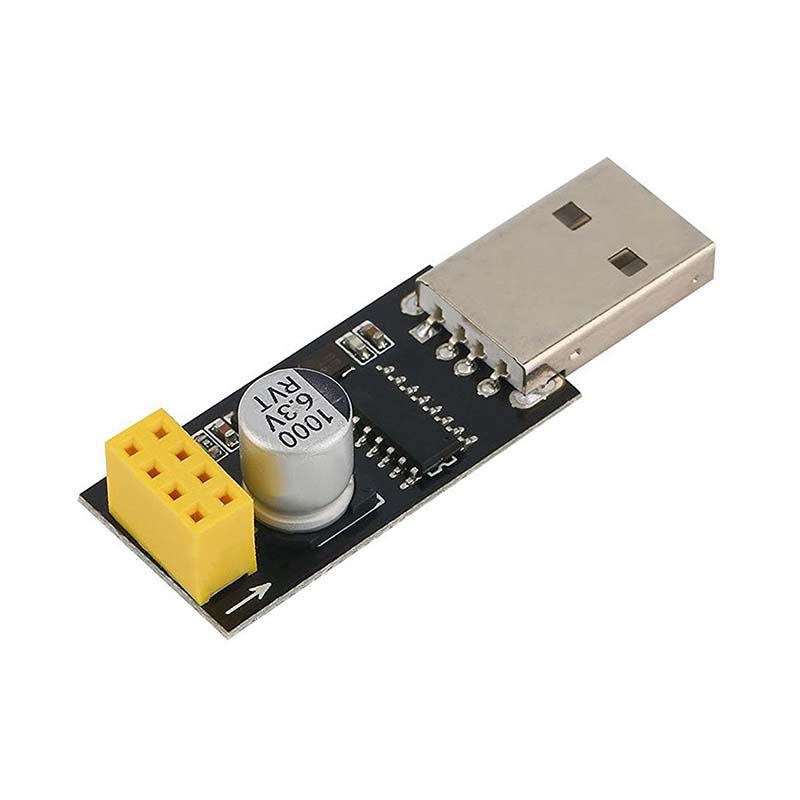

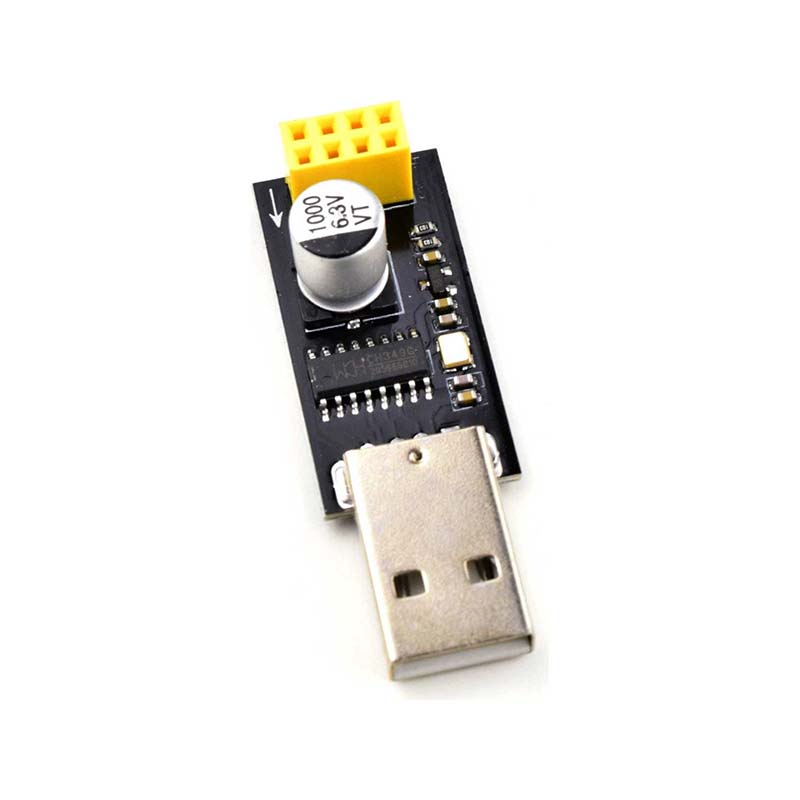

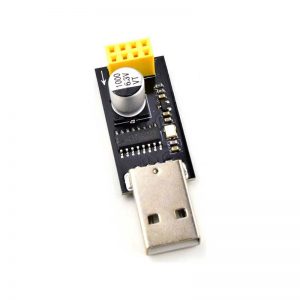

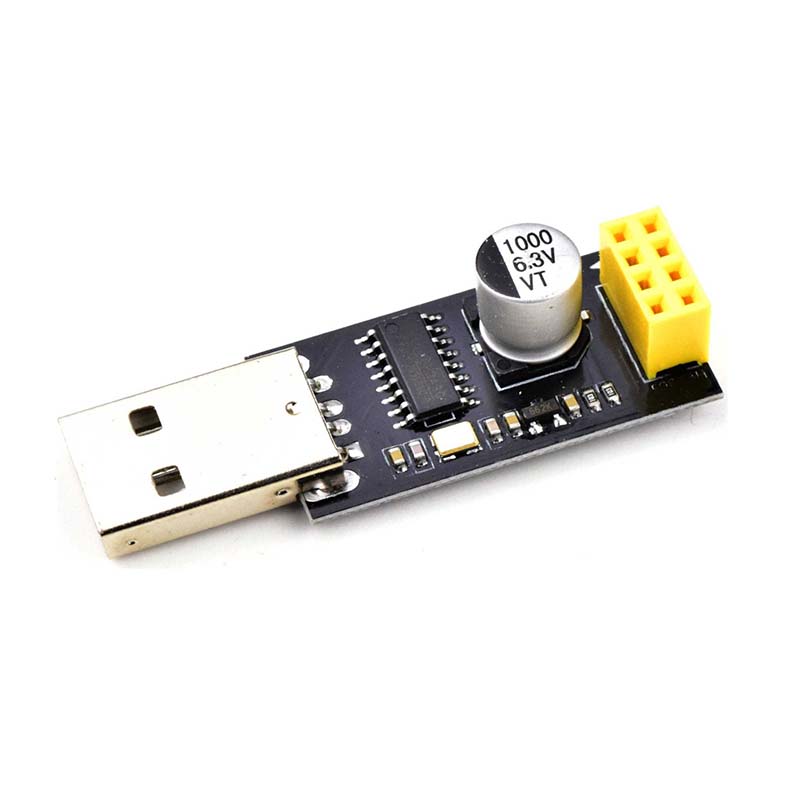

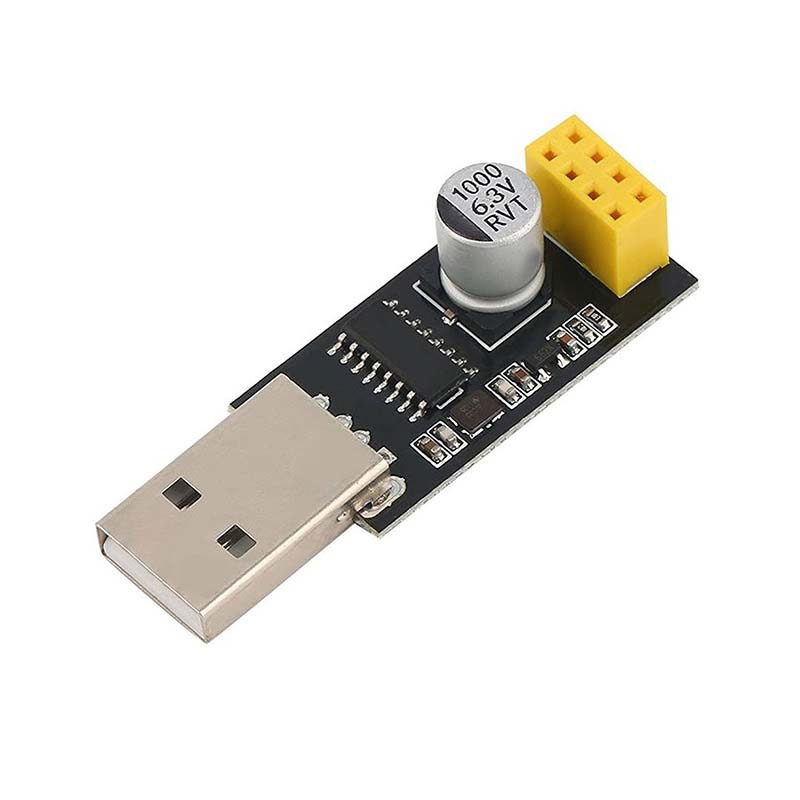

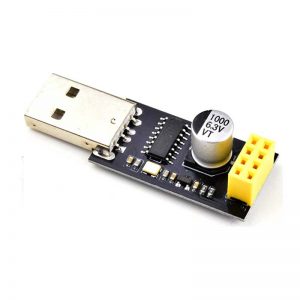

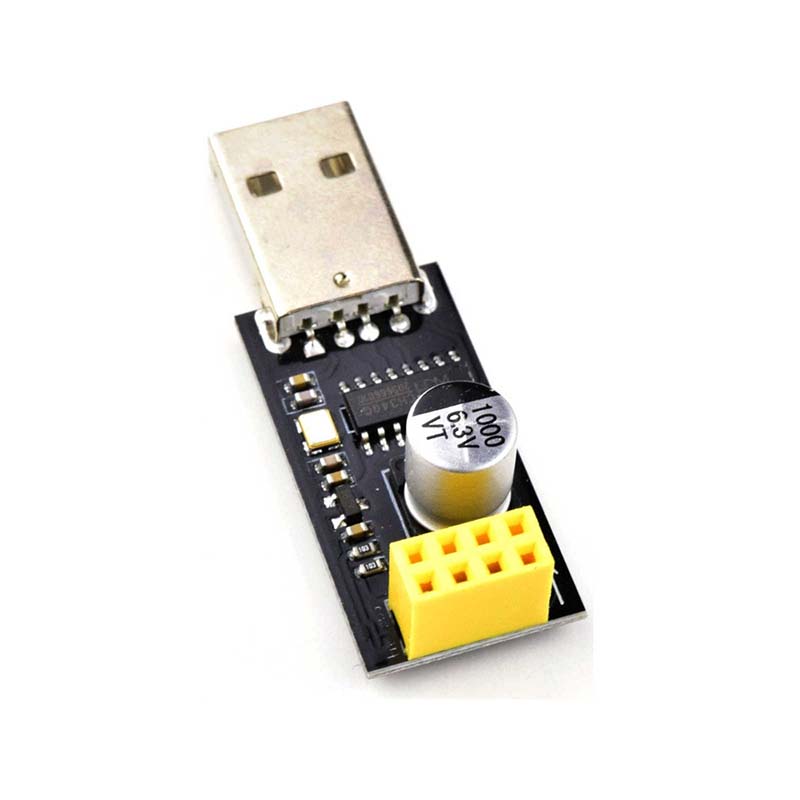

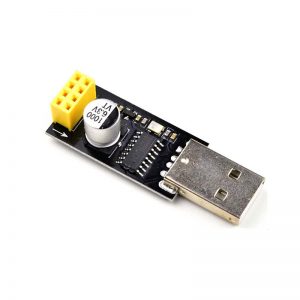

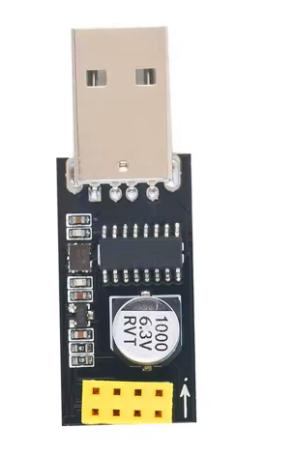

USB to ESP8266 wifi module ESP-01Debug downloader CH340WIFI burner

SKU: FA2067-2 Tag:
Weight 0.014 kg
Feature 1

Driver Chip: CH340G
Feature 2

Supports all basic windows versions
Feature 3

The adapter plate integrated 1000μF solid capacitors to ensure the current supply
Feature 4

The power supply will not be a problem to make WIFI module crashes unresponsive
Feature 5

Using 3225 SMD crystal oscillator, improve the stability of serial work, on a beautiful and tall
Feature 6

Working voltage: 4.5V – 5.5V (Onboard 3.3v LDO Regulator)
Feature 7

Working current: 300mA (LDO regulator can supply)

Description

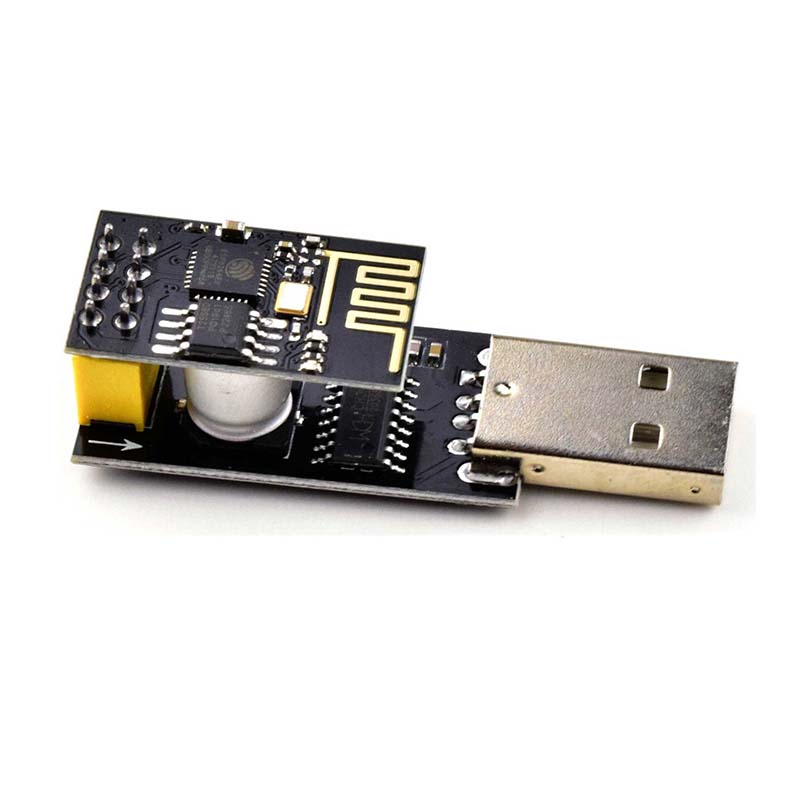

WIFI module ESP-01 ESP-01S debugging downloader: the old board can only be debugged but not downloaded. The upgraded version adds a download circuit, which can be debugged and downloaded.

This price does not include the ESP8266 WIFI module, only the conversion board! ! !

This module is only a USB-to-serial module, which is only responsible for converting the USB interface into a serial port suitable for the ESP8266 module. For all the knowledge of WiFi, please check the relevant information of ESP8266 module to use! !

The main purpose of this adapter board is to facilitate the connection of ESP8266 to the PC through the serial port.

Material characteristics:

1. Using CH340 to serial port chip, stable performance, good compatibility, Windows system basically supports all.

2. The adapter board integrates 1000uF solid capacitors to ensure current supply and will not crash the WIFI module due to power problems.

3. Adopt 3225 SMD crystal oscillator to improve the stability of the serial port, and it is beautiful and tall.
