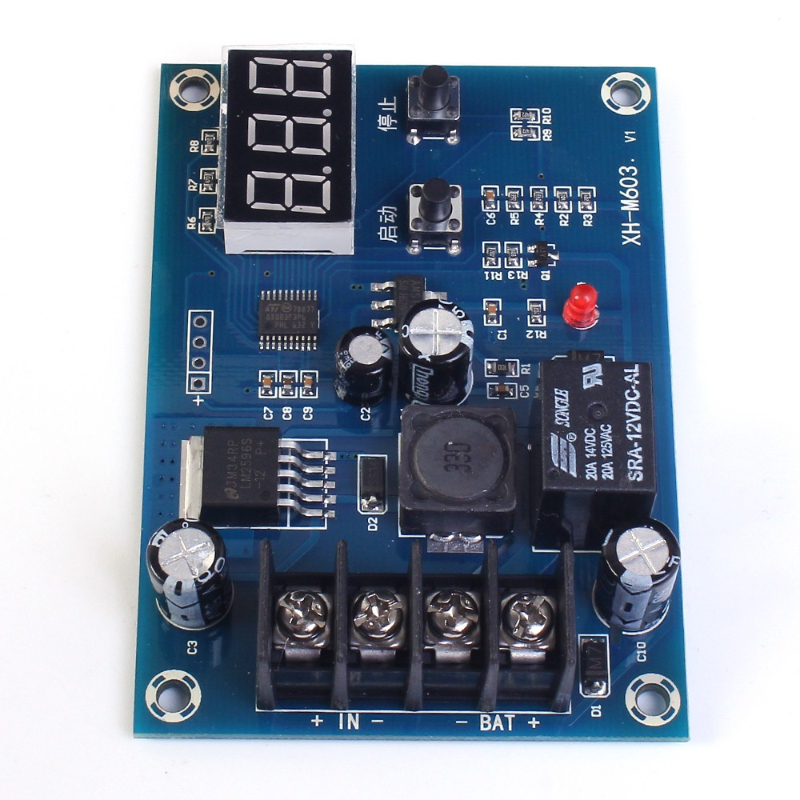

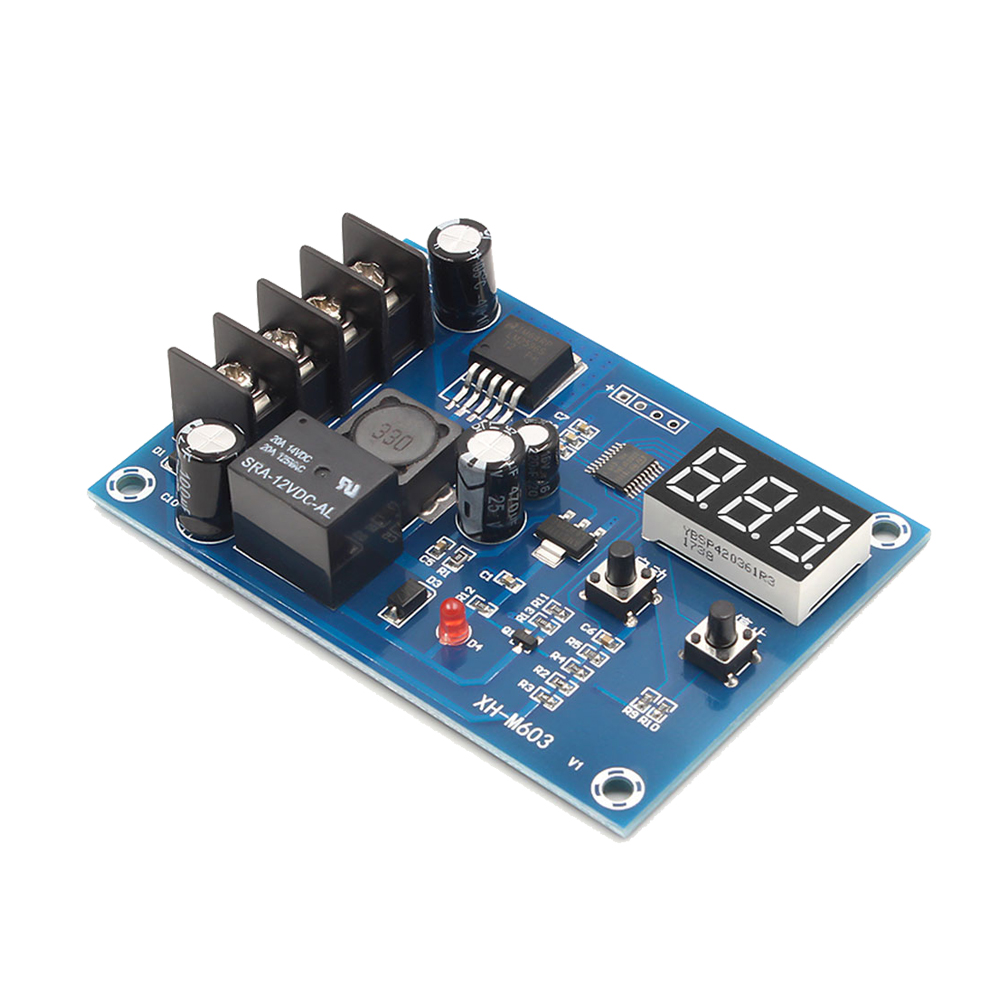

XH-M603 Battery Lithium Battery Charge Control Module 12-24v

SKU: FA2019-7 Tag:
Weight 0.025 kg

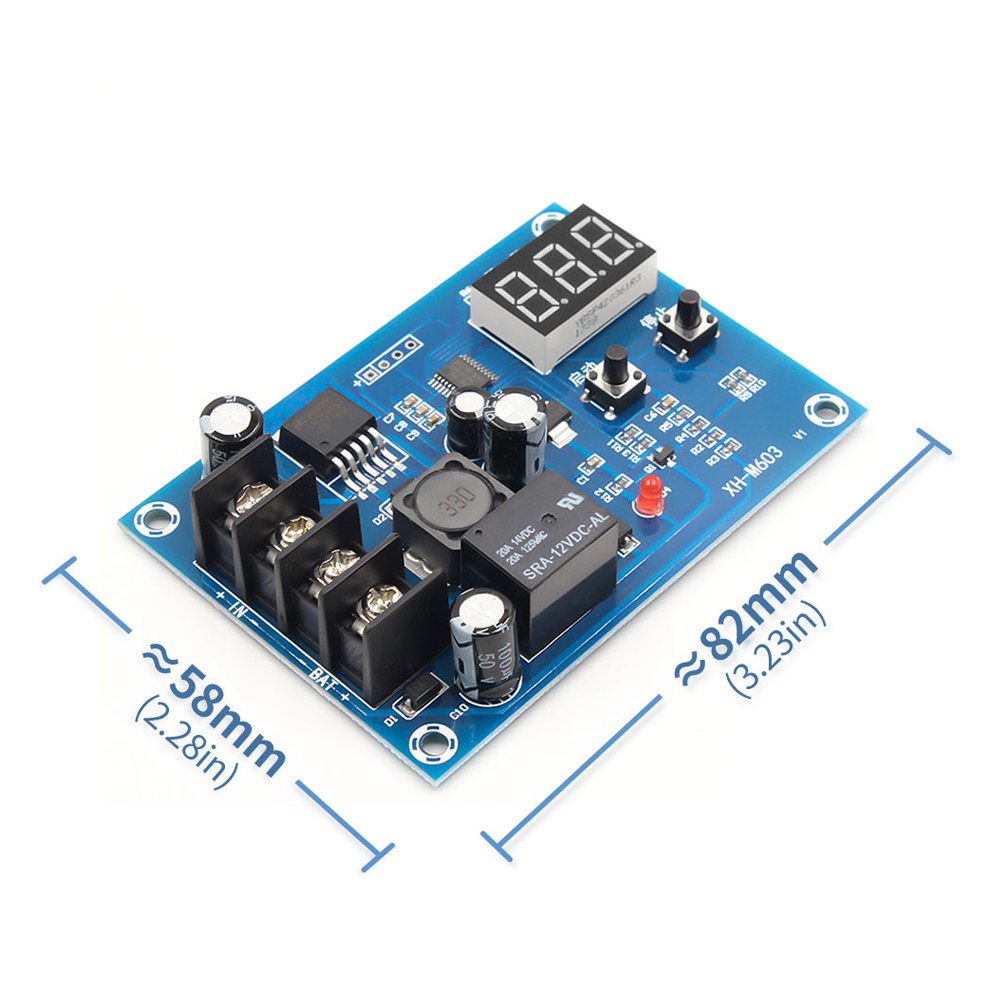

Dimensions 8.2 × 5.8 × 1.8 cm
Model

XH-M603

Input Voltage

DC 10-30V

Display Precision

0.1V

Control Precision

0.1V

Output Type

direct output

Voltage Tolerance

+/-0.1V

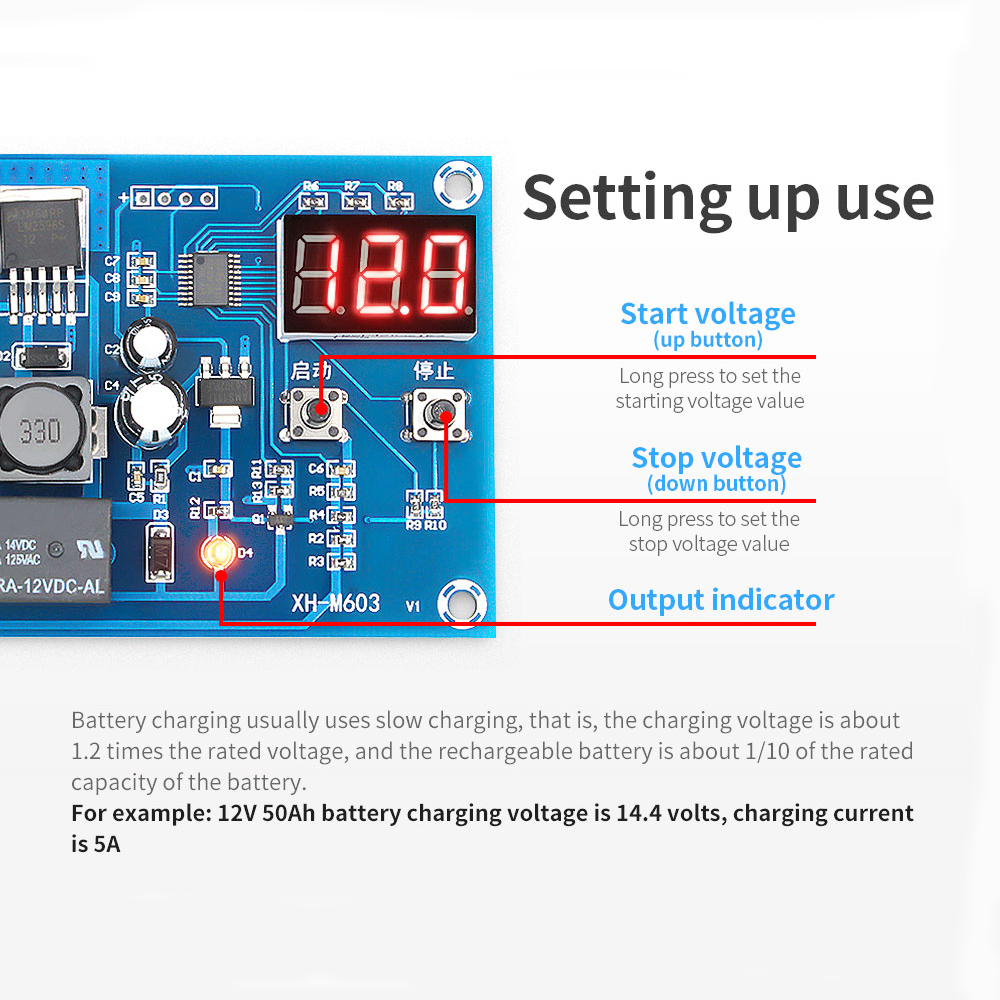

Using Method

1.Set Starting Voltage:in normal display voltage state,press the button will display start charging voltage;long press for 3s the digital tube will flash;
you can start or stop button to set starting up charge voltage value.
2.Set Stop Voltage:in normal display voltage state,press the button will display stoping charge voltage;long press the button for 3s the digital tube will flash;
you can start or stop button to set stoping charge voltage value.
3.Factory Reset:in power on state press the start/stop button at the same time,digital tube will display 888;that represents factory reset settings.

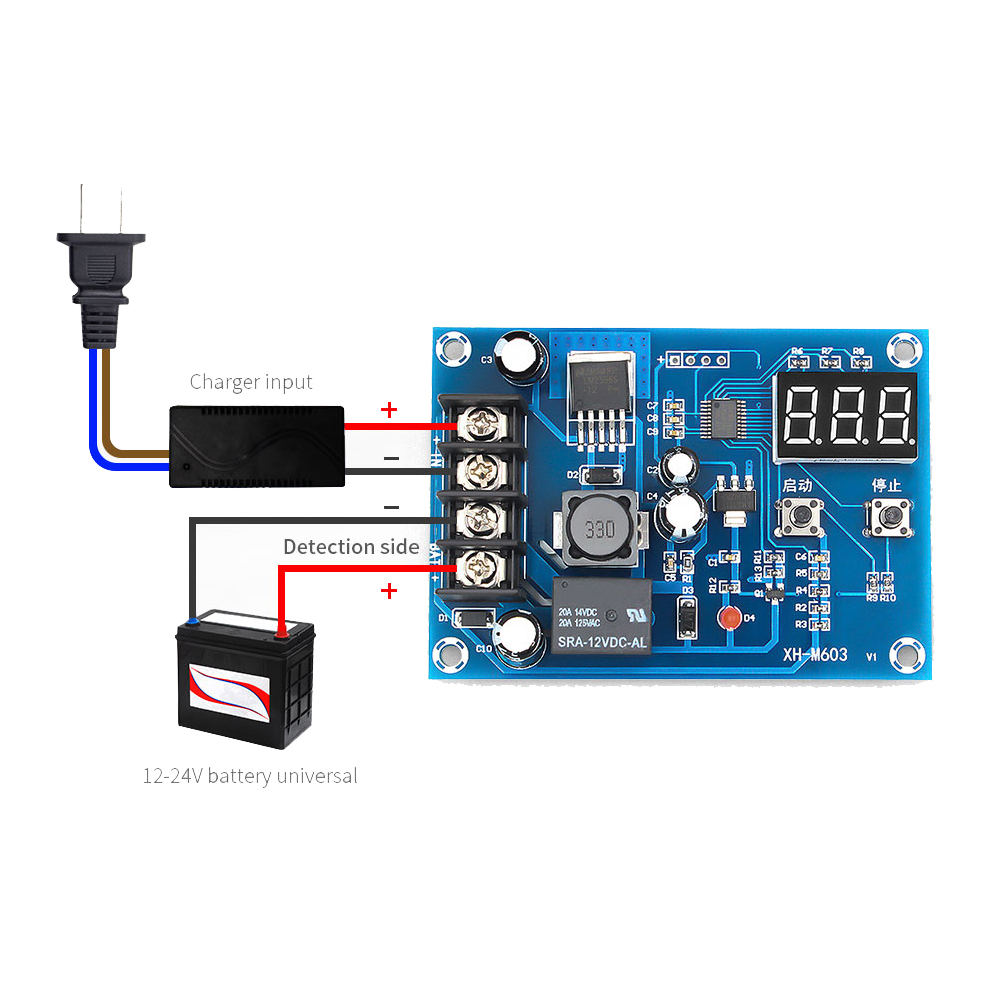

Application Fields:12-24V storage battery
